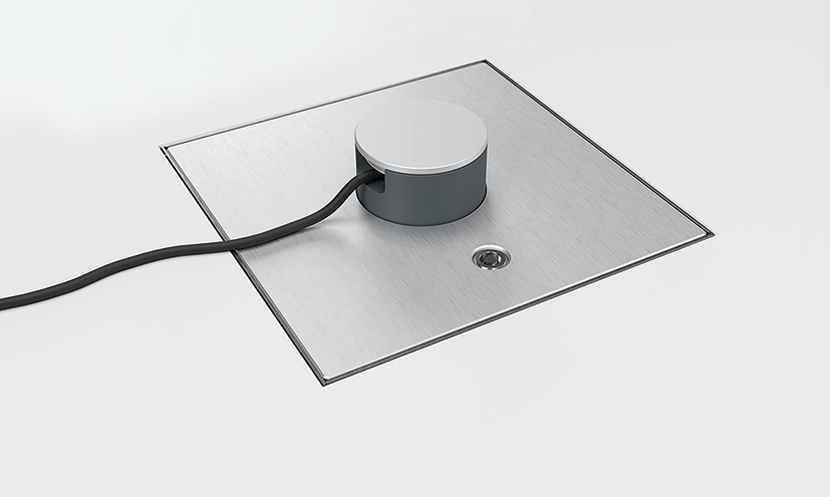

The 2008Q floor outlet enclosure from BS Bodensteckdosen Systemtechnik is the perfect choice for your space with features like.
With a compact 250×250 mm design and multiple cable entries, the 2008Q is perfect for offices, conference rooms, and commercial spaces.
Dimension:
115 x 52 x 110 mm (W x H x D)
Material Description:
Stainless steel
Technical Specification:
Floor Installation depth: 60mm Supply line: 1x front, 1x back, 2x below,
each 26 mm
Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.
Dimension:
180x180x75mm
Material Description:
Material of the floor box top cover: SS304
Material of the floor box bottom box: MS (C.R)
Technical Specification:
Fixing space: can fit 10modules.
Thickness of floor box top cover: 5mm
Thickness of the floor box bottom box: 3mm
Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.
Dimension:
146x146x75mm
Material Description:
Material of the floor box top cover: SS304
Thickness of floor box top cover: 5mm
Technical Specification:
Fixing Space: can fit 6 modules.
Supply line: 8 lateral, each Ø 25 mm
Thickness of the floor box bottom box: 3mm
Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.
Dimension:
120x120x75mm
Material Description:
Material of the floor box top cover: SS304
Material of the floor box bottom box: MS (C.R)
Technical Specification:
Fixing Space: can fit 3 modules.
Thickness of floor box top cover: 5mm
Thickness of the floor box bottom box: 3mm
The 6620A CEE Floor Box from BS Bodensteckdosen Systemtechnik is a robust and versatile power distribution solution designed for outdoor environments.
The 6620A CEE Floor Box is engineered for demanding environments, offering a reliable and secure solution for power distribution in outdoor settings.
Dimension:
500×305,5×210 mm
Material Description:
Stainless steel and anodized aluminum
Technical Specification:
500 x 305, 5x 210 mm Supply line:
2x front M32, 1x below drainage hole 50 mm
Dimension:
250 x 250 x 69mm
Material Description:
Material of the floor box top cover: Die-Cast
Alloy Trap and Nylon Frame
Material of the floor box bottom box:
Galvanized Iron (GI)
Technical Specification:
Fixing Space: can fit up to 21 modules
Recess: 9mm
Suitable: for Tile Floor
Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.
Dimension:
250x180x75mm
Material Description:
Material of the floor box top cover: SS304
Material of the floor box bottom box: MS (C.R)
Technical Specification:
Fixing space: can fit 12modules.
Thickness of floor box top cover: 5mm
Thickness of the floor box bottom box: 3mm
