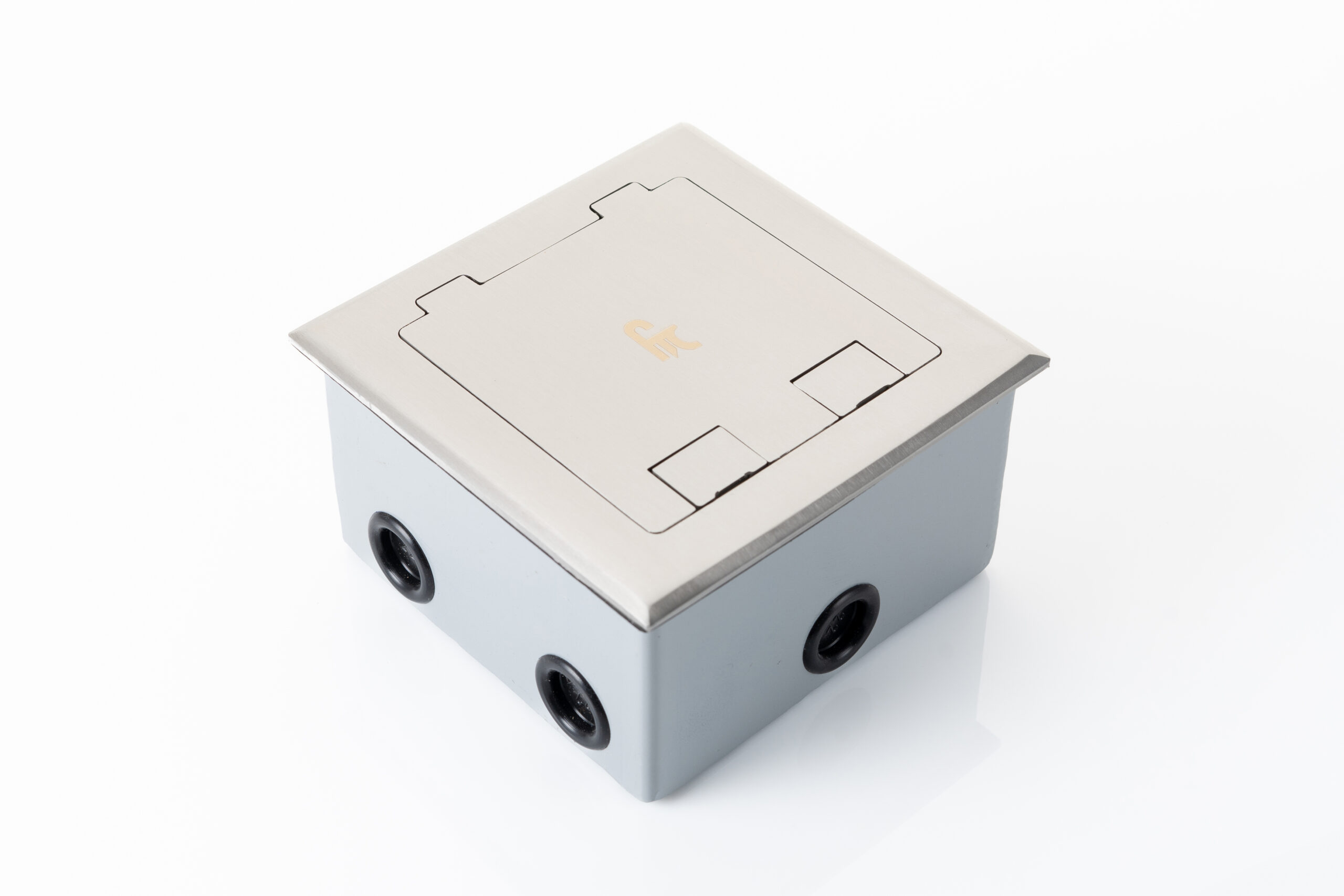

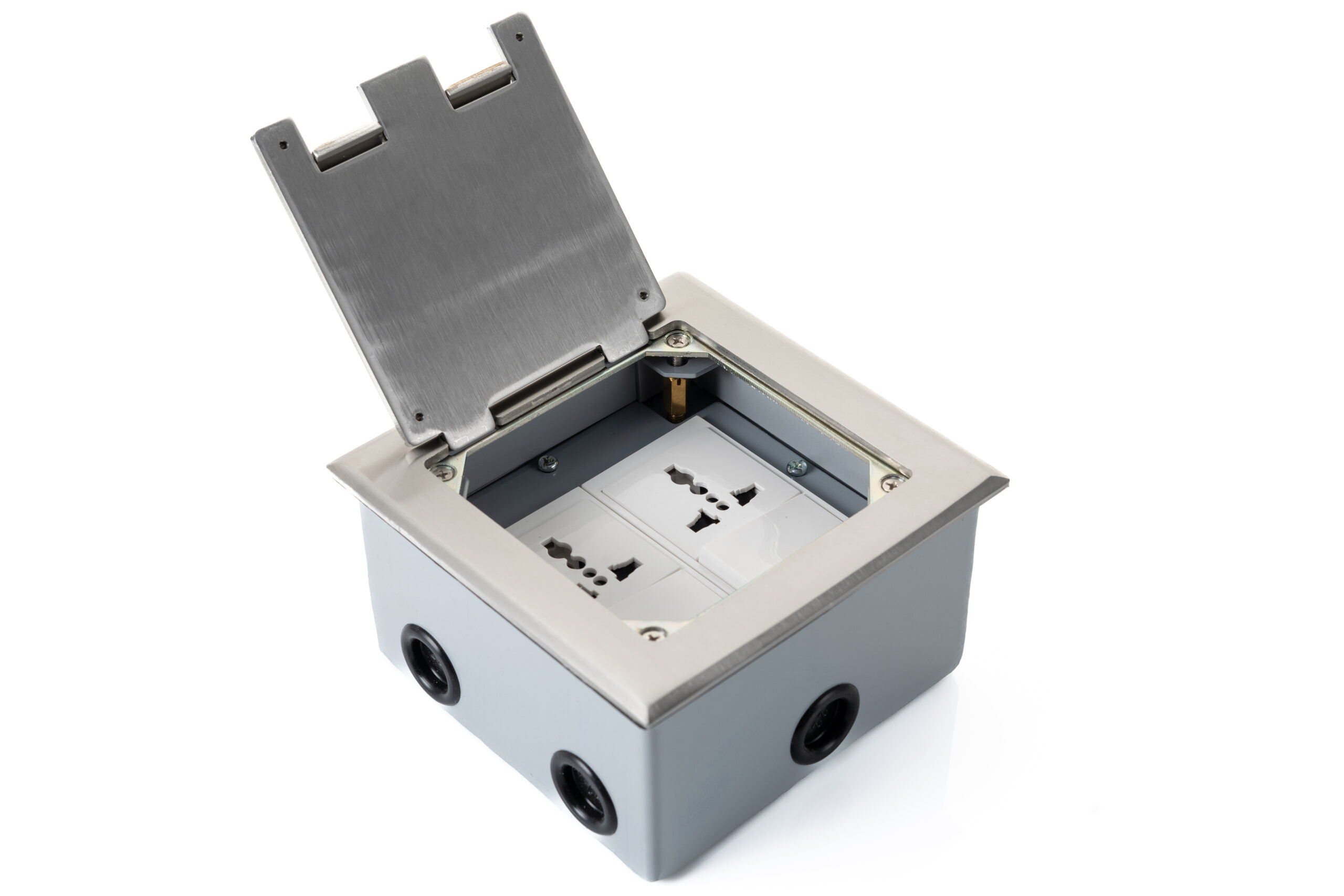

FTC146KP

FTC146KP

Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.

Dimension:
146x146x75mm

Material Description:
Material of the floor box top cover: SS304
Thickness of floor box top cover: 5mm

Technical Specification:
Fixing Space: can fit 6 modules.
Supply line: 8 lateral, each Ø 25 mm

Thickness of the floor box bottom box: 3mm
