3301E

Explore Our Products
3301E

3301E

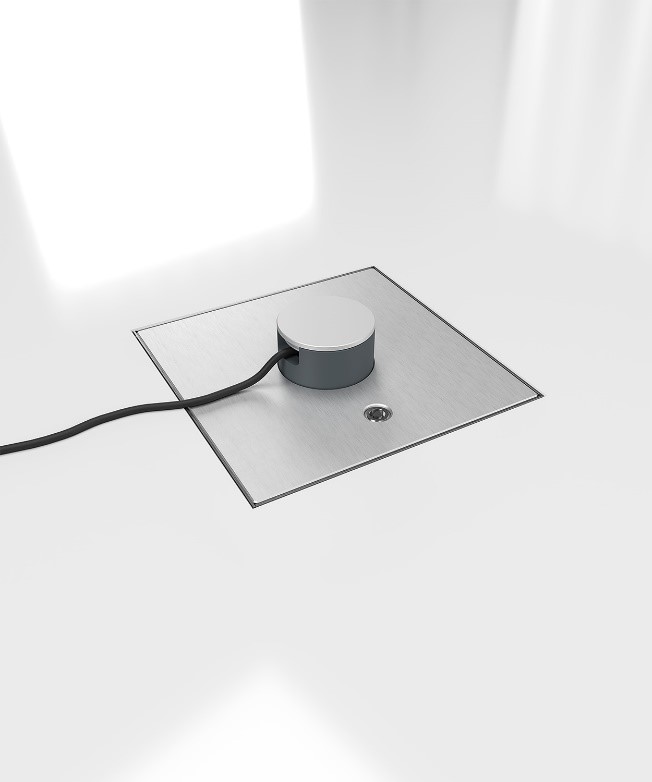

The 3301E Floor Socket from BS Bodensteckdosen Systemtechnik is a compact and durable power solution designed for interior spaces with limited installation depth, such as exhibition areas and kitchens

  • Material: Constructed from brushed stainless steel, ensuring robustness and a sleek appearance.
  • Design: Features a hinged lid for easy access and protection when not in use.
  • Dimensions: Measures 110 mm in width and depth, with a height of 62 mm.
  • Installation Depth: Requires a floor installation depth of 60 mm, making it suitable for areas with shallow floor spaces.
  • Cable Entries: Equipped with multiple cable entry points: one at the front, one at the back, and two at the bottom, each with a diameter of 26 mm, facilitating flexible wiring options.

The 3301E is designed to be walkable, adhering to IP20 protection standards, and is intended for use in dry to moist environments. Its compact design and versatile configurations make it an ideal choice for discreet and efficient power and data access in various interior settings

Dimension:
110 x 62 x 110 mm (W x H x D)

Material Description:
Stainless steel

Technical Specification:
Floor Installation depth: 60mm Supply line: 1x front, 1x back, 2x below,
each 26 mm

Related Products

View All

FTC120KP

Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.

Dimension:
120x120x75mm

Material Description:
Material of the floor box top cover: SS304
Material of the floor box bottom box: MS (C.R)

Technical Specification:
Fixing Space: can fit 3 modules.
Thickness of floor box top cover: 5mm

Thickness of the floor box bottom box: 3mm

Check Product

6620A

The 6620A CEE Floor Box from BS Bodensteckdosen Systemtechnik is a robust and versatile power distribution solution designed for outdoor environments.

  • Material and Build: The housing is constructed from 3 mm thick stainless steel and it features a 20 mm thick anodized aluminum lid, ensuring durability and resistance to environmental factors.
  • Design: The hinged lid is lockable with a tool and includes a gas pressure spring for assisted opening. It can be closed securely even with plugs inserted, providing protection and convenience.
  • Dimensions: The floor box measures 306 mm in width, 210 mm in height, and 500 mm in depth, requiring a floor installation depth of 210 mm.
  • Load Capacity: Designed to withstand surface loads up to 6.5 tons, making it suitable for areas with vehicular traffic, including trucks.
  • Protection Class: Rated at IP67 when not in use, offering protection against dust and water ingress.

The 6620A CEE Floor Box is engineered for demanding environments, offering a reliable and secure solution for power distribution in outdoor settings.

Dimension:
500×305,5×210 mm

Material Description:
Stainless steel and anodized aluminum

Technical Specification:
500 x 305, 5x 210 mm Supply line:
2x front M32, 1x below drainage hole 50 mm

Check Product

8902B

The 8902B Floor Box from BS Bodensteckdosen Systemtechnik is a height-adjustable, compact floor socket designed for interior applications.

  • Material and Build: The housing, frame, and lid are constructed from stainless steel, ensuring durability and a sleek appearance.
  • Design: Features a removable, hinged lid that can accommodate floor coverings such as carpet, parquet, or laminate up to 15 mm thick. The lid closes securely even with standard straight or angled plugs inserted.
  • Load Capacity: Designed to withstand loads up to 120 kg, making it suitable for areas with pedestrian traffic.
  • Protection Class: Rated at IP20, suitable for indoor use in dry to moist environments.

The 8902B Floor Box is ideal for integrating power and data access points seamlessly into various indoor settings, offering both functionality and aesthetic integration with existing floor design.

Dimension:
155 x 90 x 155 mm (W x H x D)

Material Description:
Stainless steel

Technical Specification:
Floor Installation depth: 90-120 mm
Supply line: 2 x lateral, 2 x back, 2 x below, Ø 26 mm

Check Product

8604A

The 8604A Floor Socket from BS Bodensteckdosen Systemtechnik is a robust and versatile power outlet solution designed for indoor environments.

  • Material and Build: The frame, lid, and equipment carrier are constructed from solid aluminum, while the housing is made of stainless steel (1.4301), ensuring durability and a sleek appearance.
  • Design: Features a hinged lid that can be closed without tools and includes a lid seal, providing protection against moisture and dust.
  • Load Capacity: Designed to withstand loads up to 900 kg, making it suitable for areas with vehicular traffic.
  • Protection Class: Rated at IP65 when not in use, offering protection against dust and water ingress.

The 8604A Floor Socket is suitable for cleaning with wet sweepers, making it an ideal choice for various indoor applications requiring a reliable and discreet power outlet solution

Dimension:
Ø 218 x 82 mm

Material Description:
Sendzimir galvanized sheet steel and stainless steel IP 65 when closed.

Technical Specification:
Installation diameter: Ø 204 x 79 mm
Supply line: 4x lateral, 4x below, Ø 25 mm

Check Product

9908A

The 9908A Raised Access Floor Socket from BS Bodensteckdosen Systemtechnik is a robust and versatile solution designed to provide seamless power and data connectivity in indoor environments.

  • Material and Build: The housing is constructed from sendzimir galvanized sheet steel, with the rim and lid made of solid aluminum, ensuring durability and a sleek appearance.
  • Design: Features a removable lid that closes even with standard straight or angled plugs inserted. The reversible lid is available in natural anodized aluminum or can be fitted with floor coverings such as carpet for aesthetic integration.
  • Dimensions: The floor socket has a diameter of 320 mm and a height of 80 mm, requiring a floor installation depth of 76 mm.
  • Protection Class: Rated at IP20, suitable for indoor use in dry to moist environments.

The 9908A Raised Access Floor Socket is designed to integrate seamlessly into raised access floors, providing a discreet and efficient power and data access point suitable for various indoor applications.

Dimension:
Ø320 x 80 mm

Material Description:
Sendzimir galvanized sheet steel, solid aluminum

Technical Specification:
Installation dimensions: Ø 298 x 76 mm
Supply line: 8x on the side, 8x below, each Ø 25 mm

Check Product

FTC250CKP

Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.

Dimension:
 250x180x75mm

Material Description:
Material of the floor box top cover: SS304
Material of the floor box bottom box: MS (C.R)

Technical Specification:
Fixing space: can fit 12modules.
Thickness of floor box top cover: 5mm

Thickness of the floor box bottom box: 3mm

Check Product
