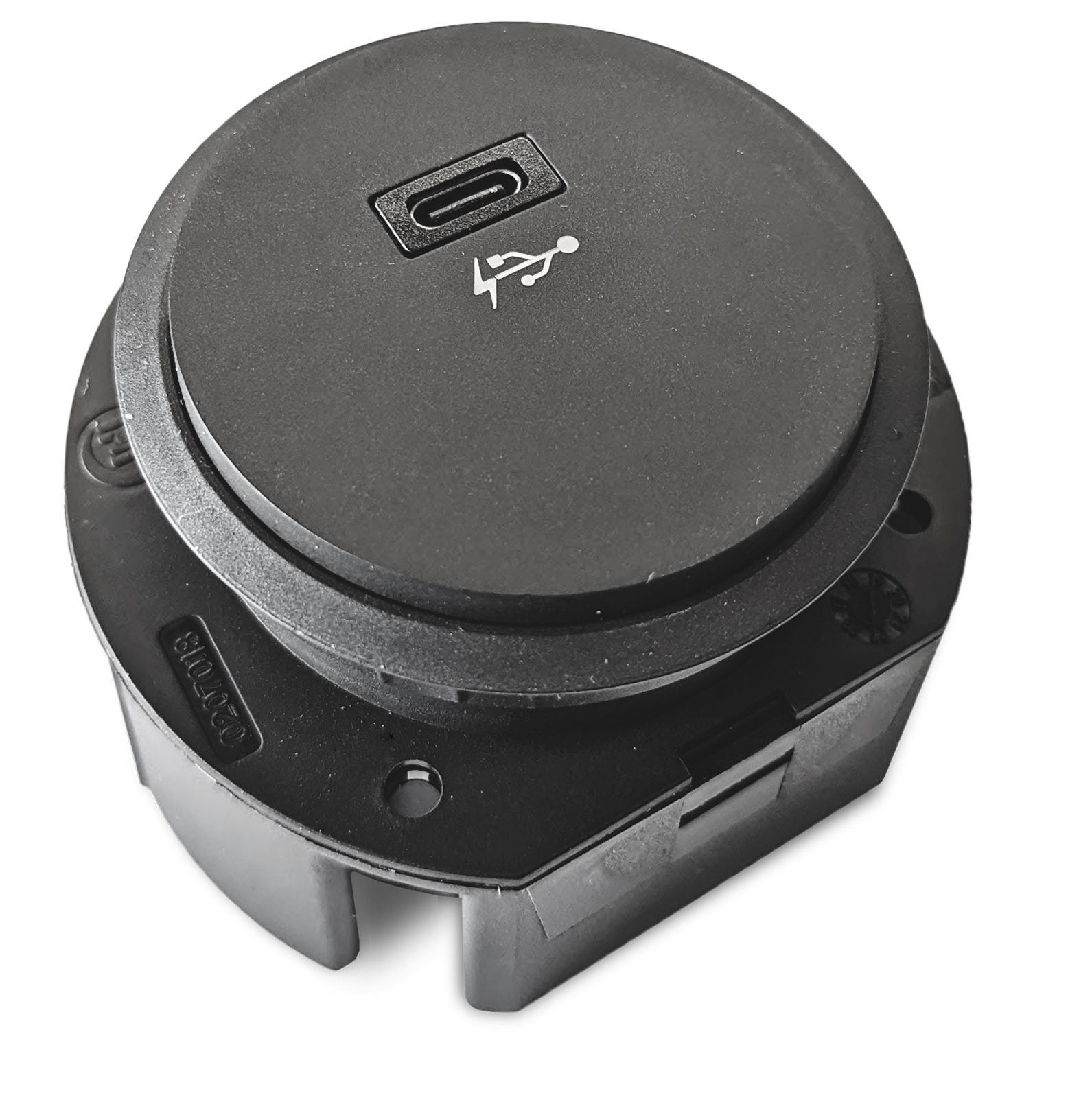

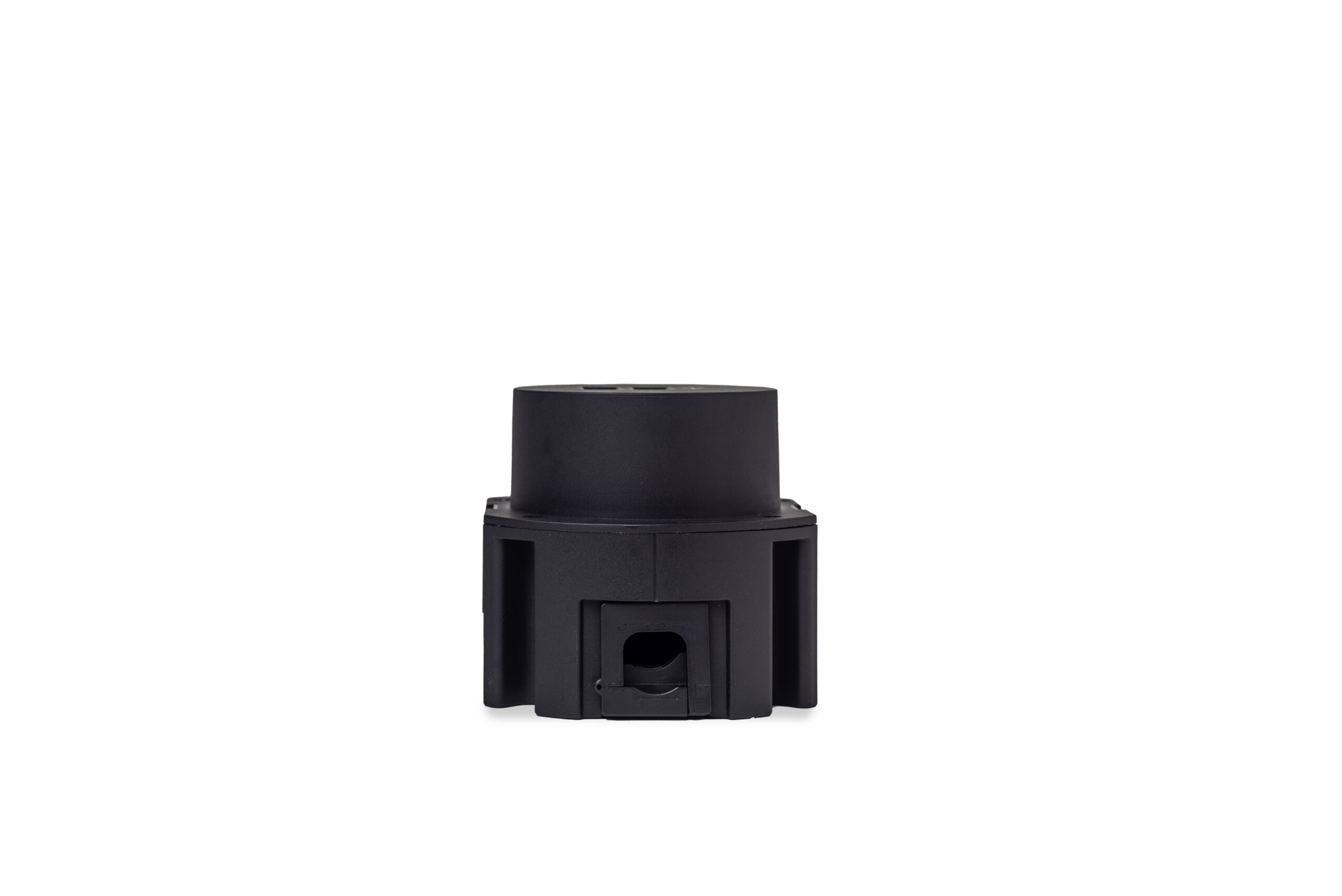

NETBOX Spot

NETBOX Spot

NETBOX Spot, the smallest power unit, provides a discreet connection point for reliable power and data.
With a minimalist design and a compact 50 mm diameter, it complements all types of furniture and interior styles.
Installed from underneath using screws, it can also be paired with a decorative grommet ring.

Product Specification

  • Sleek, attractive and minimalist design
  • Fitted with a single power point

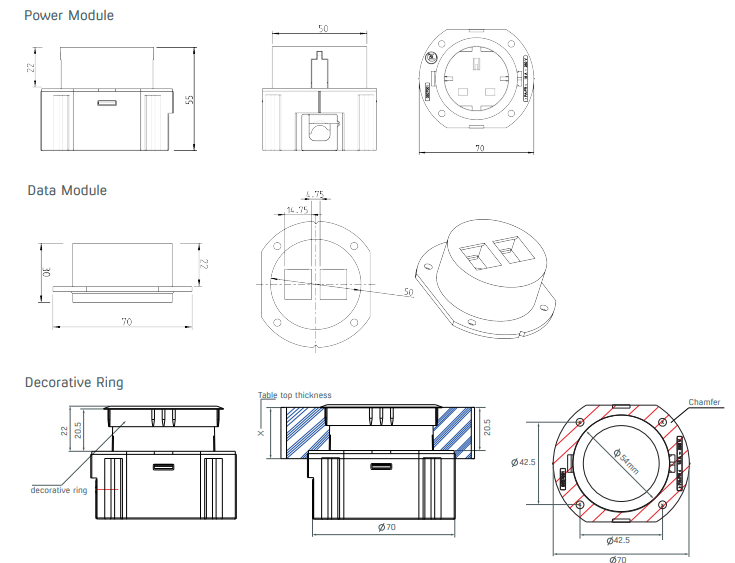

  • Installation requires 50.5mm grommet hole
  • Unit available with either one power socket, USB Charger or double communication modules suitable for installation of RJ45, RJ11, USB or HDMI couplers
  • Comes with built in Starter Cable

Application Range

  • Training Tables
  • Collaborative Areas
  • Airport Lounge
  • Reception Desks
  • Hotel Rooms

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Aluminum casing is safely grounded against hazardous electrical shock
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Colors

Related Products

NETBOX Style

NETBOX Style combines clean, straight-lined modern design with high functionality. Its low-profile aluminum surface seamlessly complements all types of furniture systems.
Designed for simple tabletop installation, it integrates effortlessly into a unified work surface.
Its wide range of module combinations supports specialized and customizable solutions. Tool-free click-stop mounting ensures smooth fitting and significant time savings.
NETBOX Style can be connected using a starter or connector cable in various lengths.

Product Specification

  • Sleek and clean design
  • Unit sits flush with table top surface
  • Customizable into various configurations
  • Available in various lengths
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Executive Desks
  • Conference Tables
  • Boardroom tables
  • Meeting Tables
  • Hotel Rooms

Special Combinations

  • Monitor Arm (requires a bracket underneath)
  • Lapguard
  • Grommet Hole

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

FTC180KP

Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.

Dimension:
 180x180x75mm

Material Description:
Material of the floor box top cover: SS304
Material of the floor box bottom box: MS (C.R)

Technical Specification:
Fixing space: can fit 10modules.
Thickness of floor box top cover: 5mm

Thickness of the floor box bottom box: 3mm

NETBOX Juke

NETBOX Juke is a detachable desktop unit mounted with power and or USB Charger. It is also suitable for lounge application where the unit can be mounted upside down below furniture.

Product Specification

  • 2 or 3 gang modules of your choice
  • Highly flexible and easy to relocate
  • Can be mounted upside down below furniture
  • Unit can be installed anywhere on table-top surface
  • Comes with built-in starter or connector cable in varying length
  • Cable entry from the back of the unit
  • Mounting options: Powerstrip, screw or clamp
  • Plug & Play technology

Application Range

  • Desks
  • Lounge
  • Workstations
  • Hotels
  • Training tables
  • Universities
  • Home Office

NETBOX Flush

NETBOX Flush is a built-in unit with dual module of your choice. Designed to blend with any environment seamlessly, the NETBOX Flush sits flush with your workspace surface. It features a rounded edge and aesthetic contemporary look.

Product Specification

  • Partition walls in offices, exhibition stalls, and training rooms.
  • Static table configurations.
  • Fitted with two modules of your choice
  • Comes with built in starter cable
  • Minimalist and sleek design
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Training Tables
  • Collaborative Areas
  • Airport Lounge
  • Receiption Desks
  • Hotel Rooms

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Flat Cables

Retrofitting in the conventional way is a time-consuming business. With the flat cable system, the basis for additional charging stations is established during the initial installation. Once the flat cable is installed, another connecting module simply needs to be added if required. This saves considerable installation. The advantage of this is that the flat cable system can be quickly expanded to include additional charging stations. Often, only a small number of charging stations are needed for initial installation and can go up to 20 charging stations

Podis

The tray cable system podis® CON is the ideal solution for the decentralized, simple and flexible energy distribution for machines and systems with large dimensions or interlinking. The safe insulation-penetrating technique ensures simple replacement, relocation and addition of modules – flexible energy in every position.
