NETBOX Leaf

NETBOX Leaf

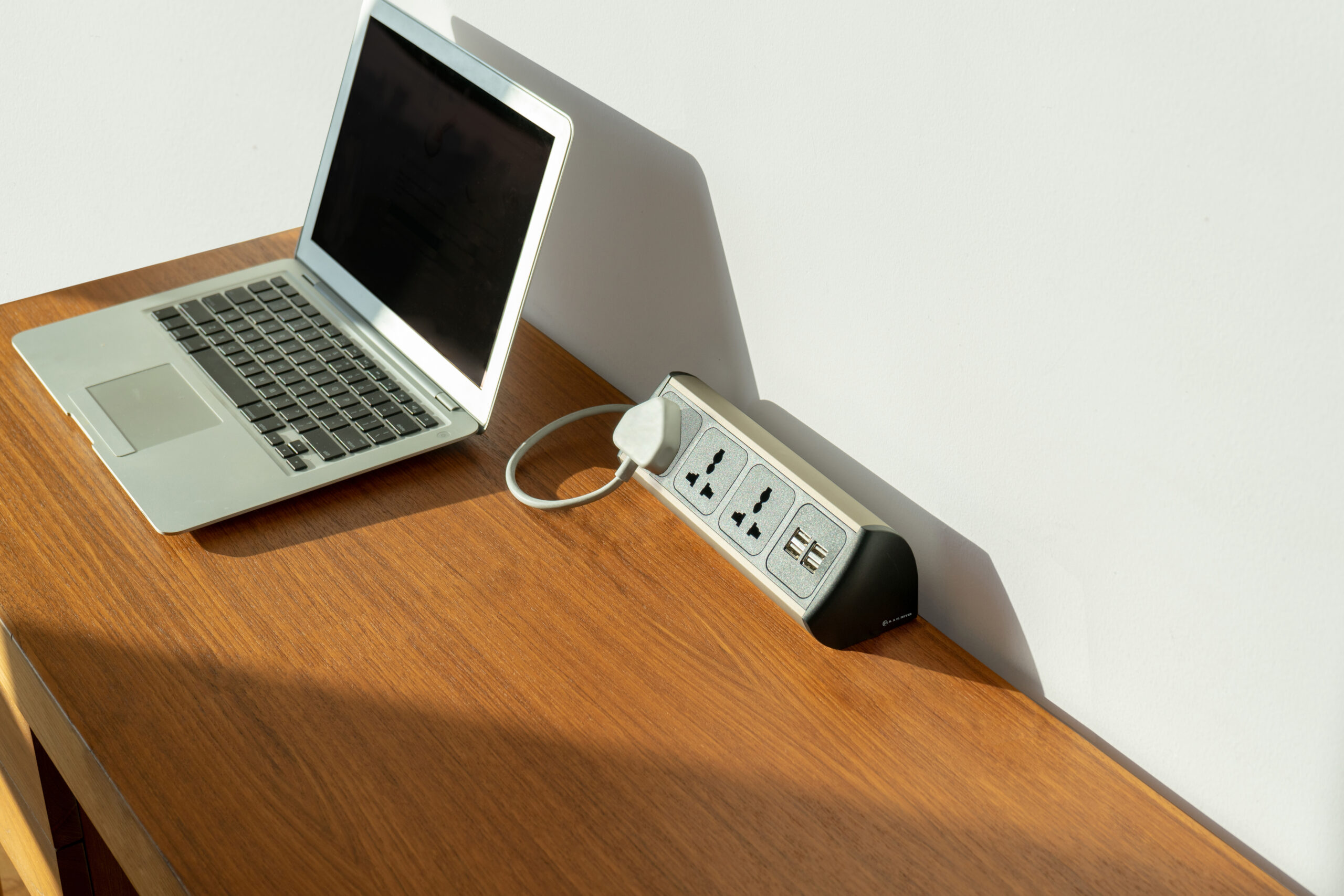

The NETBOX Leaf is a surface-mounted unit designed to optimize space and adapt to desk-sharing environments thanks to its compact footprint and elegant form.

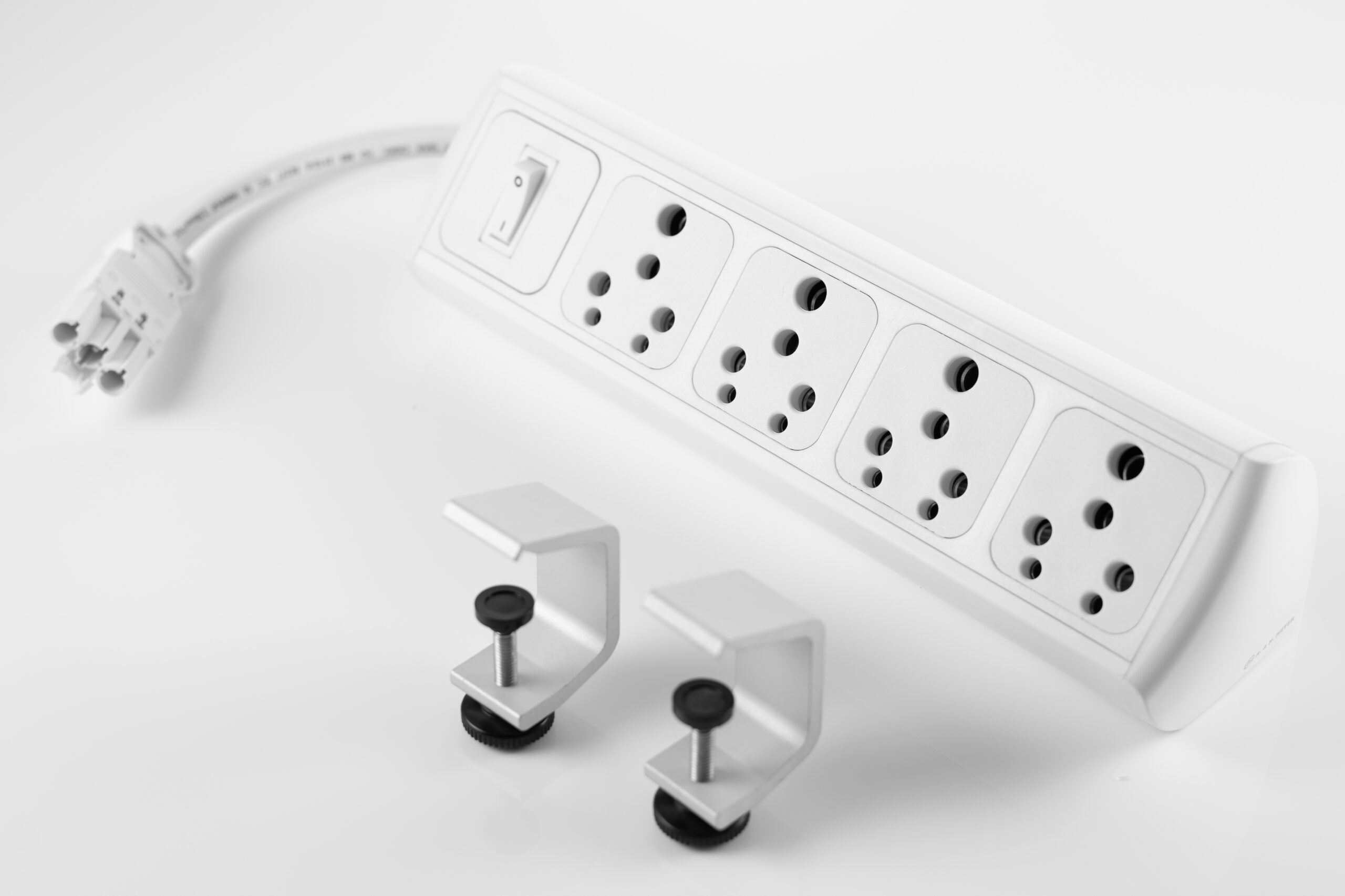

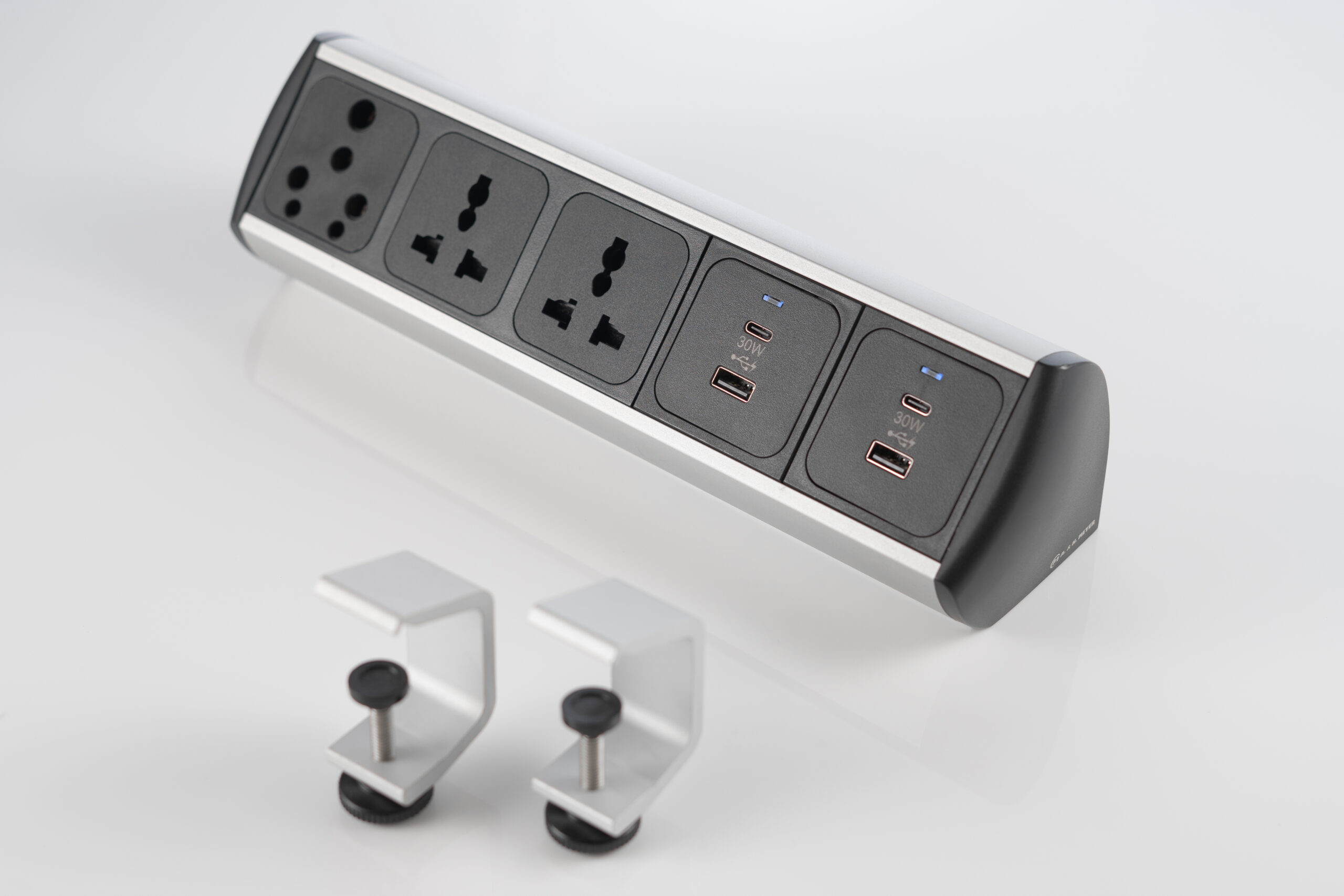

Easy to install and use, it can be securely mounted using Powerstrips or a table clamp, offering durable and efficient access to power and communication outlets.
This unit can be configured with 250 module options and comes hardwired with a built-in starter or connector cable of customizable length.
Inspired by modern organic aesthetics, the NETBOX Leaf features fluid lines and dynamic curves with end-caps shaped like a leaf.

Product Specification

  • Highly flexible and easy to relocate
  • Powerstrips allow unit to be installed anywhere on table-top surface
  • Optional: Installation with mounting clamp
  • Customizable into various length and configurations
  • Direct access to power and data modules
  • Comes with built-in starter or connector cable in varying length
  • Plug & Play technology

Application Range

  • Desks
  • Hotels
  • Workstations
  • Universities
  • Training tables
  • Home Offices

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Colors

Related Products

NETBOX Style

NETBOX Style combines clean, straight-lined modern design with high functionality. Its low-profile aluminum surface seamlessly complements all types of furniture systems.
Designed for simple tabletop installation, it integrates effortlessly into a unified work surface.
Its wide range of module combinations supports specialized and customizable solutions. Tool-free click-stop mounting ensures smooth fitting and significant time savings.
NETBOX Style can be connected using a starter or connector cable in various lengths.

Product Specification

  • Sleek and clean design
  • Unit sits flush with table top surface
  • Customizable into various configurations
  • Available in various lengths
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Executive Desks
  • Conference Tables
  • Boardroom tables
  • Meeting Tables
  • Hotel Rooms

Special Combinations

  • Monitor Arm (requires a bracket underneath)
  • Lapguard
  • Grommet Hole

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

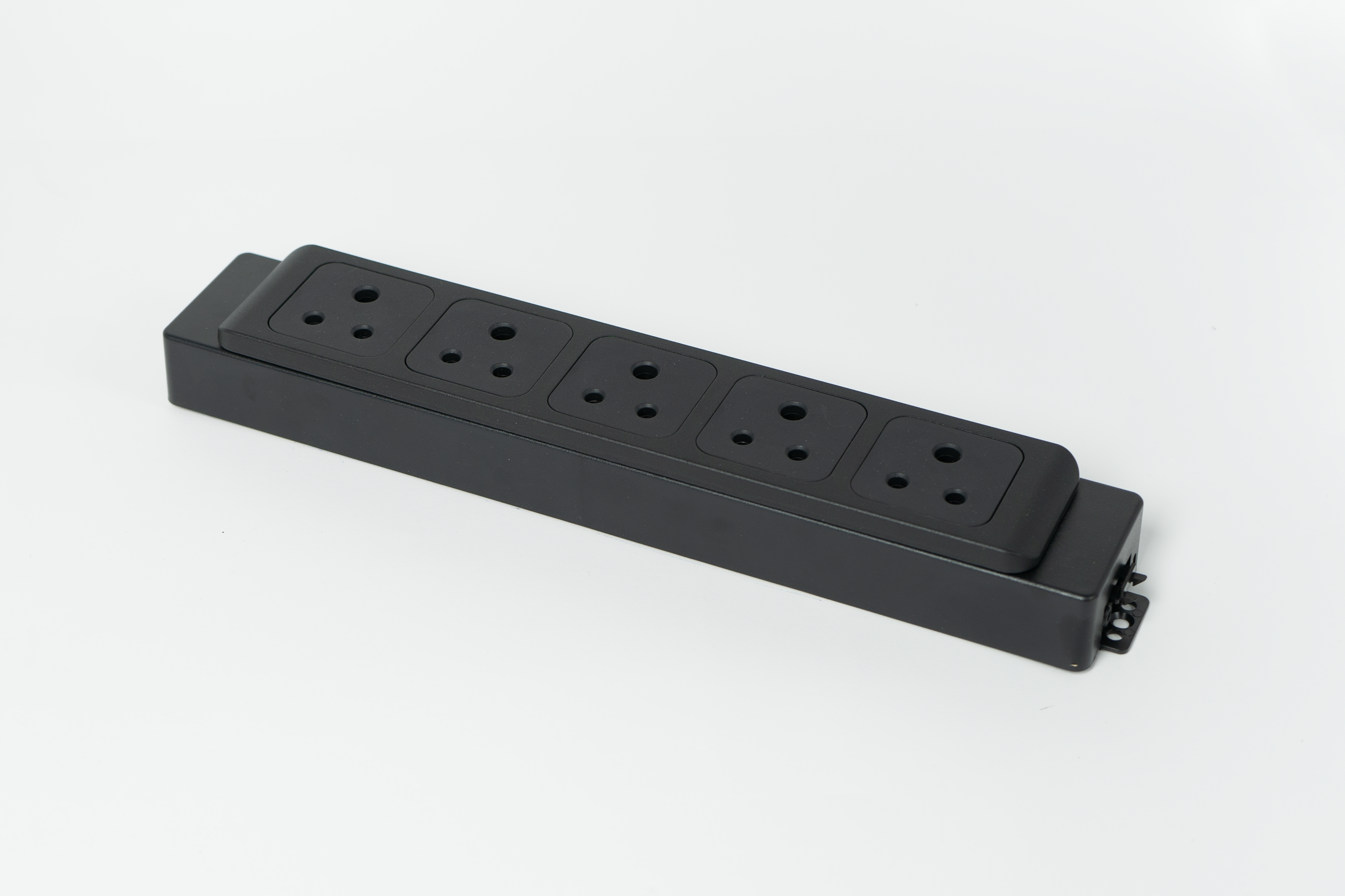

Netbox M

Netbox M ( M1, M2, M3, M4, M5) is a standard power, data and multimedia unit in plastic finish which comes fitted with detachable frame.

Product Specification

  • Functional and cost efficient
  • Standard model for power, voice and data transmission
  • Several NETBOX M can be interconnected using connector cables
  • Can be installed and mounted on any given surface or concealed within partitions and cable trays
  • Plug & Play technology

Application Range

  • Workstations
  • Cable Trays
  • Panel Systems
  • Home Office

Technical Details

  • Rated for 110 to 250V, and up to a maximum of 20A
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Profilebox

NETBOX Profilebox is a standard power, data and multimedia unit in aluminium finish.

Product Specification

  • Durable and sturdy aluminium profile
  • Individual configuration
  • Customizable up to 35 outlet modules
  • Separate power circuits possible
  • Optional: Male and female connectors in same end cap
  • Plug & Play technology

Application Range

  • Workstations
  • Cable Trays
  • Home Offices
  • Meeting Tables

Technical Details

  • Rated for 110 to 250V, and up to a maximum of 20A
  • Material: ABS-FR; low concentration of heavy metal
  • Power and data are isolated to eliminate interferences
  • Provision for static current discharge
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Turn Comfort

NETBOX Turn Comfort rotates at the press of a button—either to reveal or conceal the socket outlets.
When in the “closed” position, it sits flush with the mounting surface, maintaining a clean, unobtrusive appearance.
NETBOX Turn Comfort permits access from any angle, making it a highly flexible solution. Since cables run below the table, the unit’s sleek look is enhanced—especially in table tops with a minimum thickness of 10 mm—and it is available in customizable lengths.

Product Specification

  • Sleek and attractive design
  • Unit sits flush with table top surface when retracted
  • Opens automatically with a press on the push button at the side, manual rotation for full display of unit
  • Customizable into various configurations and lengths
  • Accessible from any direction
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Podis

The tray cable system podis® CON is the ideal solution for the decentralized, simple and flexible energy distribution for machines and systems with large dimensions or interlinking. The safe insulation-penetrating technique ensures simple replacement, relocation and addition of modules – flexible energy in every position.

NETBOX Turn

NETBOX Turn is A. & H. Meyer’s signature built-in unit. It can be manually rotated to either reveal or conceal the socket outlets.
When rotated to the “closed” position, the unit sits flush with the surface into which it is mounted. This allows for an unobtrusive surface top when the unit is not in use.

Product Specification

  • Sleek and attractive design
  • Unit sits flush with table top surface when retracted
  • Opens automatically with a press on the push button at the side, manual rotation for full display of unit
  • Customizable into various configurations and lengths
  • Accessible from any direction
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request
