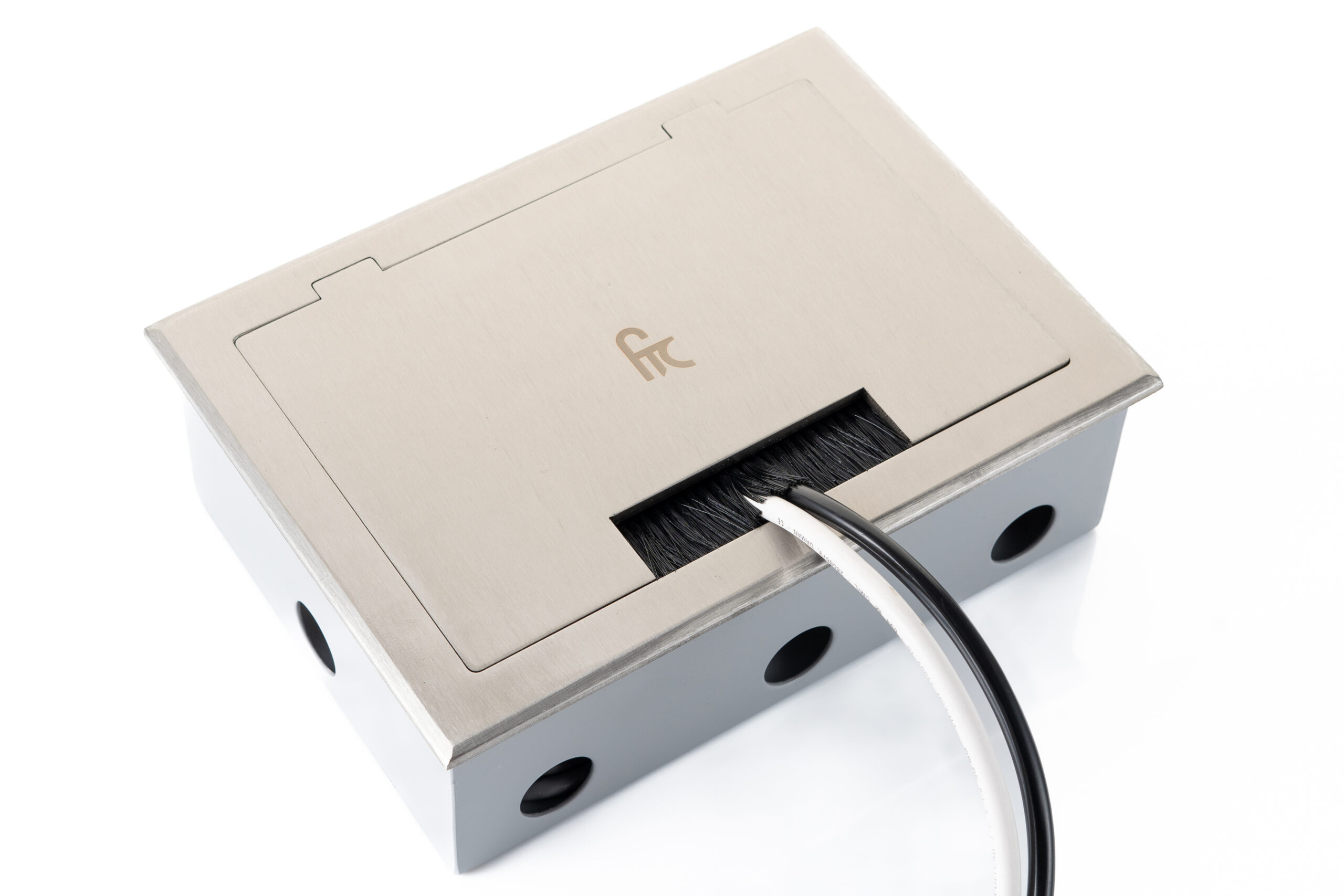

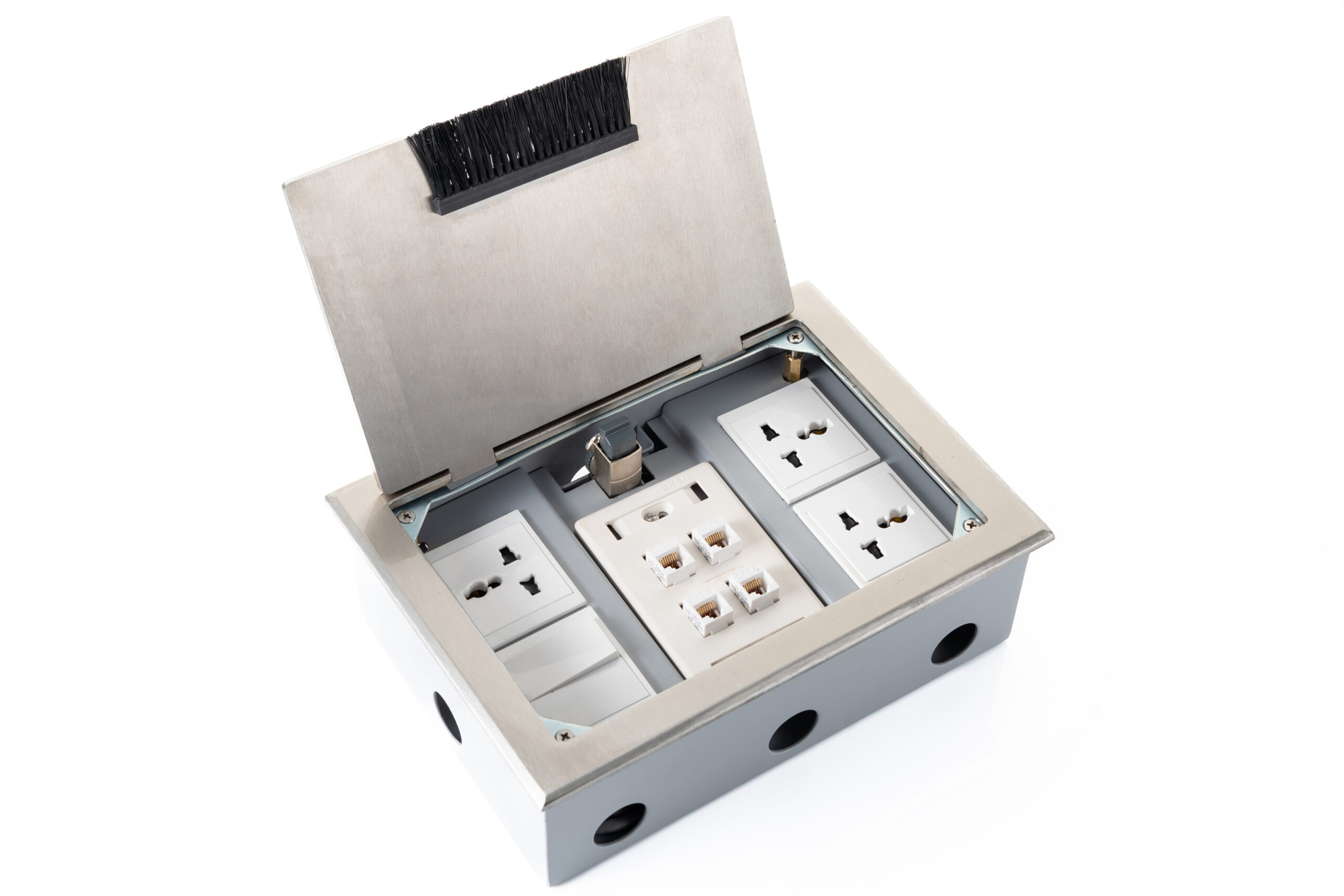

Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.
Dimension:
250x180x75mm
Material Description:
Material of the floor box top cover: SS304
Material of the floor box bottom box: MS (C.R)
Technical Specification:
Fixing space: can fit 12modules.
Thickness of floor box top cover: 5mm
Optional 3 side hair brush
Optional Soft Close
Thickness of the floor box bottom box: 3mm
NETBOX Point Duplex is a built-in unit for installation in 120mm grommet. This unit features 2 power sockets alongside the flexibility of 2 multimedia modules, allowing you to tailor your connectivity experience to your choice. Ideal for round meeting tables, lounges, and workstations.
NETBOX Juke is a detachable desktop unit mounted with power and or USB Charger. It is also suitable for lounge application where the unit can be mounted upside down below furniture.
NETBOX Smart is a detachable desktop mounted power & data unit in aluminium finish.
Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.
Dimension:
120x120x75mm
Material Description:
Material of the floor box top cover: SS304
Material of the floor box bottom box: MS (C.R)
Technical Specification:
Fixing Space: can fit 3 modules.
Thickness of floor box top cover: 5mm
Thickness of the floor box bottom box: 3mm
Retrofitting in the conventional way is a time-consuming business. With the flat cable system, the basis for additional charging stations is established during the initial installation. Once the flat cable is installed, another connecting module simply needs to be added if required. This saves considerable installation. The advantage of this is that the flat cable system can be quickly expanded to include additional charging stations. Often, only a small number of charging stations are needed for initial installation and can go up to 20 charging stations
NETBOX Profilebox Sub is a compact; power, data and multimedia unit. Built in durable aluminium finish, the unit is designed for easy under mounting, ideally suited for your workstation, meeting table and home office.
