NETBOX Flush

NETBOX Flush

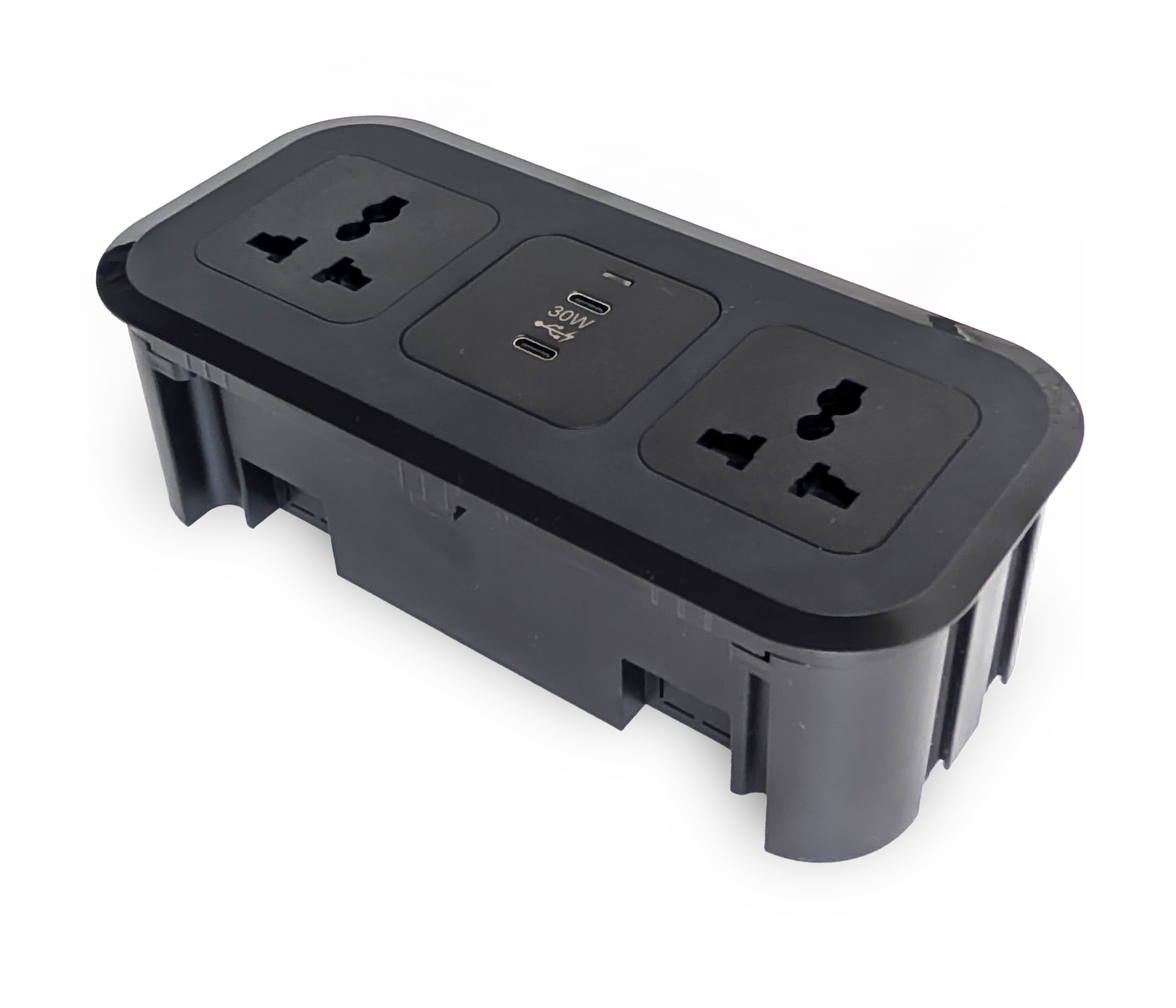

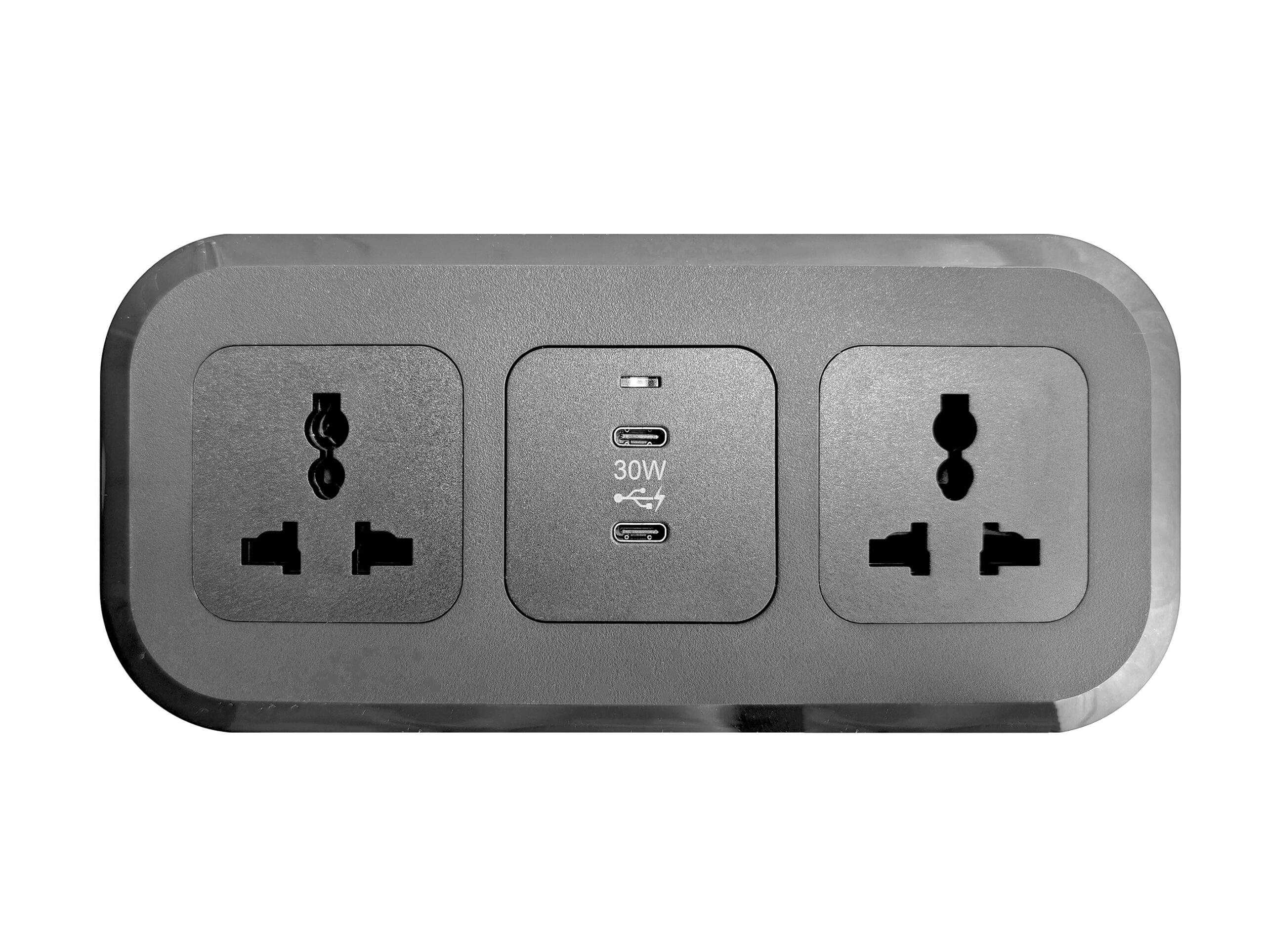

NETBOX Flush is a built-in unit with dual module of your choice. Designed to blend with any environment seamlessly, the NETBOX Flush sits flush with your workspace surface. It features a rounded edge and aesthetic contemporary look.

Product Specification

  • Partition walls in offices, exhibition stalls, and training rooms.
  • Static table configurations.
  • Fitted with two modules of your choice
  • Comes with built in starter cable
  • Minimalist and sleek design
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Training Tables
  • Collaborative Areas
  • Airport Lounge
  • Receiption Desks
  • Hotel Rooms

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Colors

Related Products

NETBOX Point Duplex

NETBOX Point Duplex is a built-in unit for installation in 120mm grommet. This unit features 2 power sockets alongside the flexibility of 2 multimedia modules, allowing you to tailor your connectivity experience to your choice. Ideal for round meeting tables, lounges, and workstations.

Product Specification

  • Fitted with dual power point or USB Charger with 2 communication modules
  • Communication module choices: Data coupler / HDMI coupler / USB coupler
  • Comes with built in starter cable
  • Sleek and attractive design
  • Installation requires 120mm grommet hole
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Training Tables
  • Receiption Desks
  • Hotel Rooms
  • Collaborative Areas
  • Airport Lounge

Colour

  • Black
  • White

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Point

Compact and elegant, NETBOX Point is a Red Dot award-winning unit designed for seamless, secure connectivity in furniture.
Whether used in offices, libraries, hotels, airports, or homes, its minimalist silhouette and customizable cable outlet colors blend effortlessly with any décor.
Its efficient modular design fits perfectly into standard 80 mm grommets, making it ideal for retrofitting.
The click-stop mechanism ensures quick assembly and disassembly.

Product Specification

  • Fitted with a single power point or twin USB Charger with 2 communication modules
  • Communication module choices:
  • Data coupler
  • HDMI coupler
  • USB coupler
  • Comes with built in starter cable
  • Sleek and attractive design
  • Installation requires 80mm grommet hole
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology
  • Red Dot Design Award Winner 2011

Application Range

  • Training Tables
  • Collaborative Areas
  • Airport Lounge
  • Receiption Desks
  • Hotel Rooms

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Spot

NETBOX Spot, the smallest power unit, provides a discreet connection point for reliable power and data.
With a minimalist design and a compact 50 mm diameter, it complements all types of furniture and interior styles.
Installed from underneath using screws, it can also be paired with a decorative grommet ring.

Product Specification

  • Sleek, attractive and minimalist design
  • Fitted with a single power point
  • Installation requires 50.5mm grommet hole
  • Unit available with either one power socket, USB Charger or double communication modules suitable for installation of RJ45, RJ11, USB or HDMI couplers
  • Comes with built in Starter Cable

Application Range

  • Training Tables
  • Collaborative Areas
  • Airport Lounge
  • Reception Desks
  • Hotel Rooms

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Aluminum casing is safely grounded against hazardous electrical shock
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Drop

NETBOX Drop is a seamless built-in solution for workstations and executive desks, providing an organised hub for your power and data connections. It is designed with a sleek and flush design with a ‘drop’ space, allowing you to store your excess cables temporarily while in use. Accessible from the front, the NETBOX Drop is a convenient and practical solution for powering and connecting devices without the hassle of tangled cords at your workstation.

Product Specification

  • Sleek design
  • Customisable into various configurations
  • Standard model for power, voice and data transmission
  • Can be interconnected using connector cables
  • Quick installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Workstations
  • Executive Desks

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Flat Cables

Retrofitting in the conventional way is a time-consuming business. With the flat cable system, the basis for additional charging stations is established during the initial installation. Once the flat cable is installed, another connecting module simply needs to be added if required. This saves considerable installation. The advantage of this is that the flat cable system can be quickly expanded to include additional charging stations. Often, only a small number of charging stations are needed for initial installation and can go up to 20 charging stations

NETBOX Turn

NETBOX Turn is A. & H. Meyer’s signature built-in unit. It can be manually rotated to either reveal or conceal the socket outlets.
When rotated to the “closed” position, the unit sits flush with the surface into which it is mounted. This allows for an unobtrusive surface top when the unit is not in use.

Product Specification

  • Sleek and attractive design
  • Unit sits flush with table top surface when retracted
  • Manual rotation for easy access
  • Customizable into various configurations and lengths
  • Accessible from any direction
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request
