NETBOX Axial Comfort

NETBOX Axial Comfort

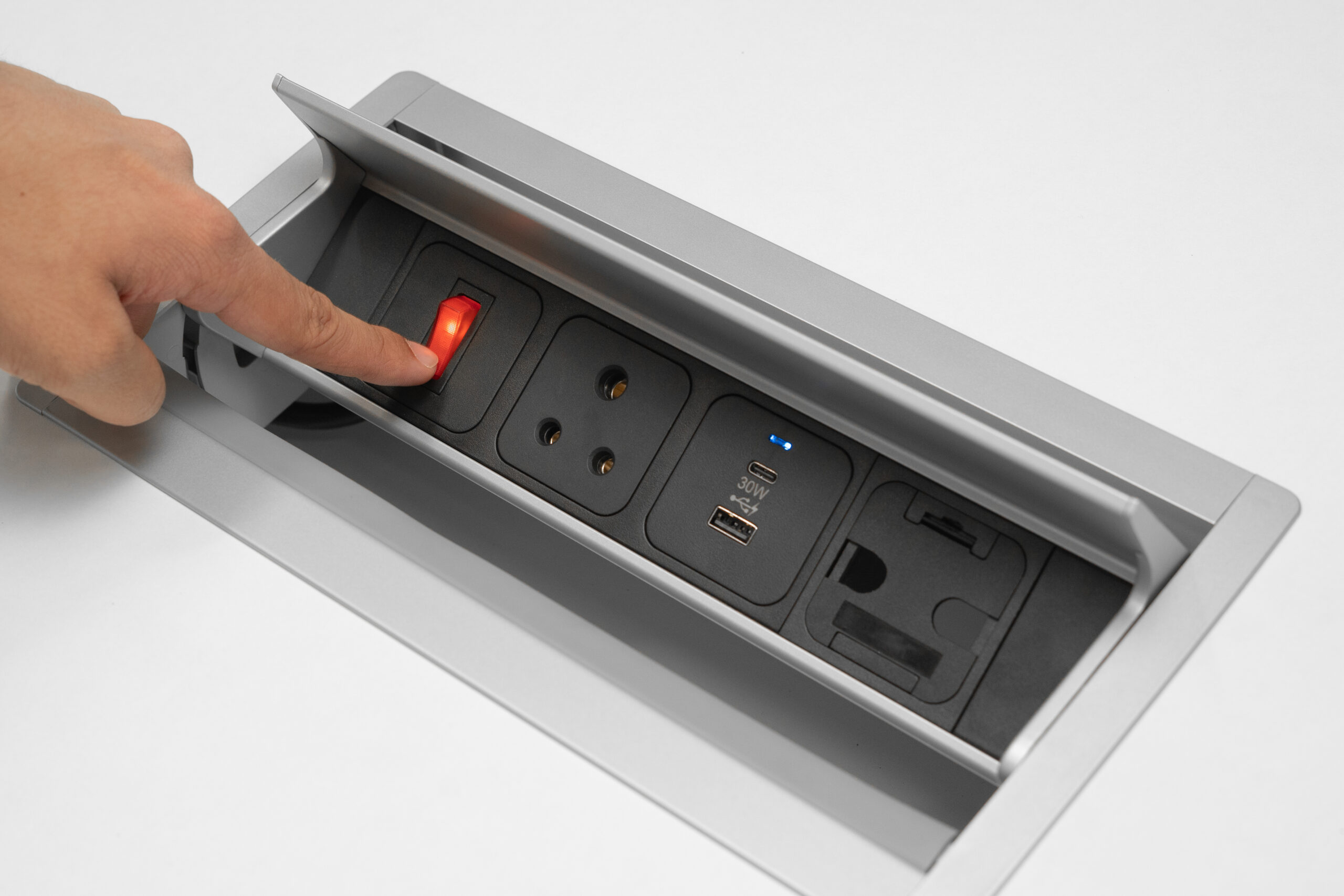

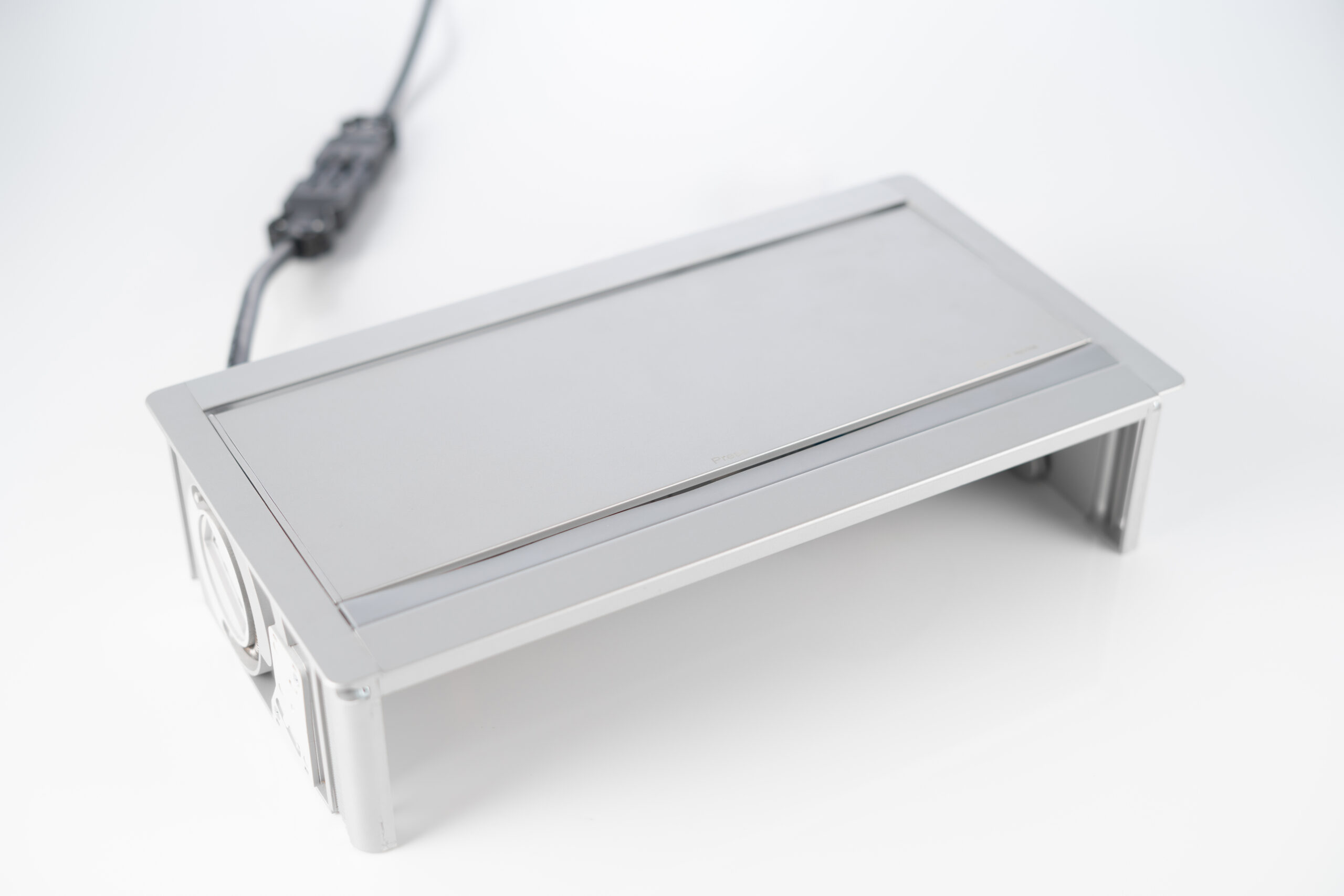

NETBOX Axial Comfort is a built-in power and data unit in an aluminium finish. For increased convenience it is fitted with a spring supported opening mechanism. The new version features a sleeker design with neat end caps. The unit does not protrude below the end caps once opened and fits the previous cut-out size.

Product Specification

  • Unit opens at 60° angle

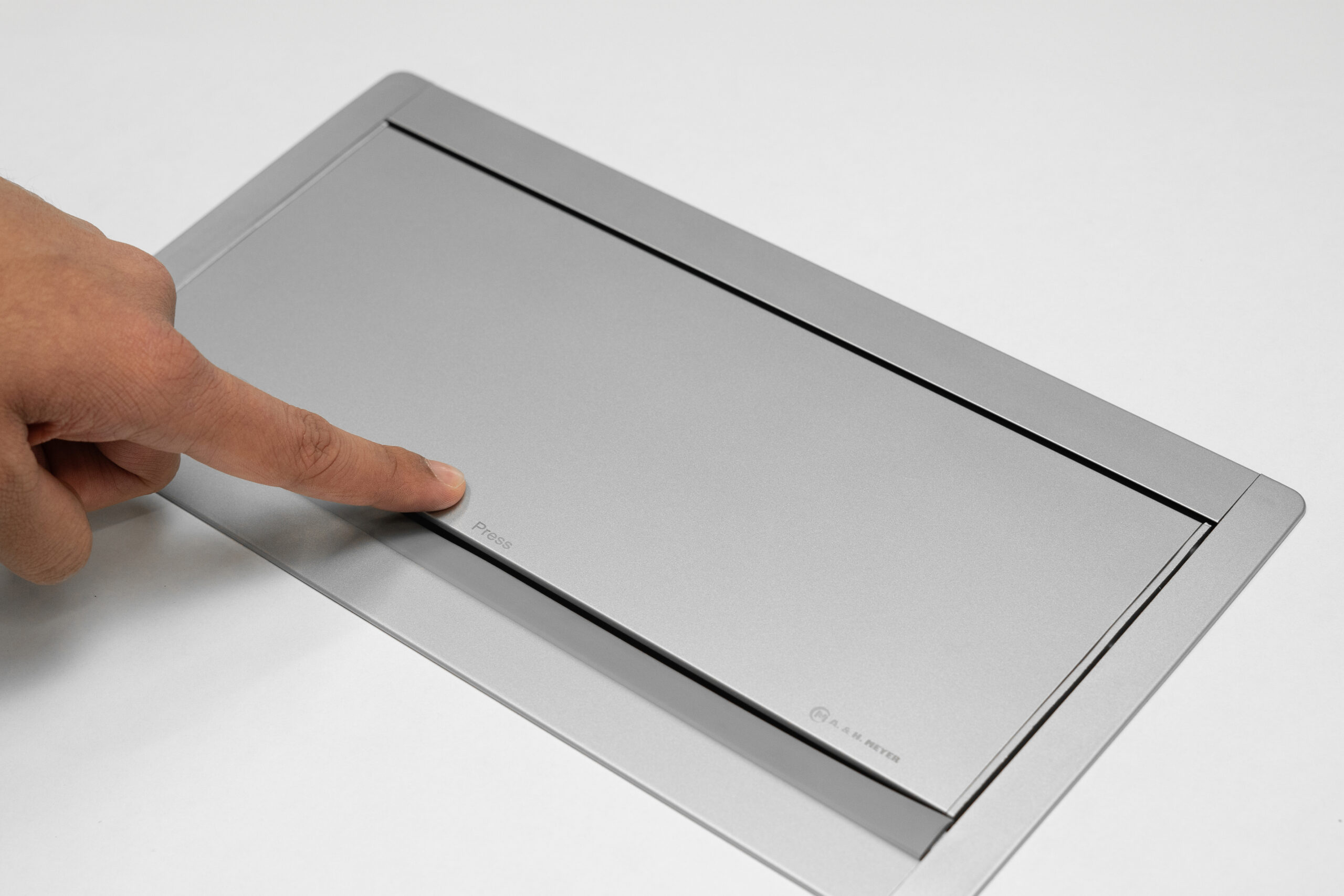

  • Spring supported cover for easy opening
  • Cable outlet with rubber lips
  • Unit sits flush with mounted surface
  • Available in any length
  • Customizable into various configurations
  • Tool free installation
  • Quick installation with the click-stop mechanism
  • Plug & Play technology

Application Range

  • Executive Desks
  • Workstations
  • Conference Tables
  • Boardroom Tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA6-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Colors

Related Products

NETBOX Leaf

The NETBOX Leaf is a surface-mounted unit designed to optimize space and adapt to desk-sharing environments thanks to its compact footprint and elegant form.
Easy to install and use, it can be securely mounted using Powerstrips or a table clamp, offering durable and efficient access to power and communication outlets.
This unit can be configured with 250 module options and comes hardwired with a built-in starter or connector cable of customizable length.
Inspired by modern organic aesthetics, the NETBOX Leaf features fluid lines and dynamic curves with end-caps shaped like a leaf.

Product Specification

  • Highly flexible and easy to relocate
  • Powerstrips allow unit to be installed anywhere on table-top surface
  • Optional: Installation with mounting clamp
  • Customizable into various length and configurations
  • Direct access to power and data modules
  • Comes with built-in starter or connector cable in varying length
  • Plug & Play technology

Application Range

  • Desks
  • Hotels
  • Workstations
  • Universities
  • Training tables
  • Home Offices

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Netbox M

Netbox M ( M1, M2, M3, M4, M5) is a standard power, data and multimedia unit in plastic finish which comes fitted with detachable frame.

Product Specification

  • Functional and cost efficient
  • Standard model for power, voice and data transmission
  • Several NETBOX M can be interconnected using connector cables
  • Can be installed and mounted on any given surface or concealed within partitions and cable trays
  • Plug & Play technology

Application Range

  • Workstations
  • Cable Trays
  • Panel Systems
  • Home Office

Technical Details

  • Rated for 110 to 250V, and up to a maximum of 20A
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Starfish

NETBOX Starfish is an on-table unit with easy access to power, data and multimedia outlets. A NETBOX Starfish with built-in wireless charger is also available. This unit features a unique design and is suitable for installation on a 80mm grommet. NETBOX Starfish is ideal for conference and meeting tables.

NETBOX Starfish is an on-table connectivity unit offering easy access to power, data, and multimedia outlets.
Designed for installation on an 80 mm grommet, it features a unique shape ideal for conference and meeting tables.

Product Specification

  • Customised configuration up to 6 outlets
  • Direct access to power, data and multimedia modules
  • Comes with built-in starter cable or connector cable in varying length
  • Installation requires 80mm grommet hole
  • Tool free and quick installation with the click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom Tables
  • Meeting Tables

Colour

  • Black
  • White/Black

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Davis Bus Track System

Applications

  • High-rise buildings
  • Commercial complexes
  • Industrial plants

Characteristics

  • Carefully designed power busways to handle all electrical, thermal, and mechanical load requirements
  • Robust enclosures to ensure optimum heat dissipation
  • Advanced manufacturing with computerised CNC machines for improved precision and accuracy
  • Special epoxy insulation for greater fire resistance
  • Fully mechanical interlocks to prevent tampering and improve safety

TECHNICAL DETAILS

  • Manufactured and tested for compliance with the latest international standards
  • Designed to withstand voltages up to 11kV at frequencies of 60Hz and higher
  • Certified with KEMA/DEKRA and ASTA for protection against short circuits

FTC 250CKP

Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.

Dimension:
 250x180x75mm

Material Description:
Material of the floor box top cover: SS304
Material of the floor box bottom box: MS (C.R)

Technical Specification:
Fixing space: can fit 12modules.
Thickness of floor box top cover: 5mm
Optional 3 side hair brush
Optional Soft Close

Thickness of the floor box bottom box: 3mm

NETBOX Profilebox Sub

NETBOX Profilebox Sub is a compact; power, data and multimedia unit. Built in durable aluminium finish, the unit is designed for easy under mounting, ideally suited for your workstation, meeting table and home office.

Product Specification

  • Durable and sturdy aluminium profile
  • Individual configuration
  • Customizable up to 35 outlet modules
  • Separate power circuits possible
  • Plug & Play technology

Application Range

  • Workstations
  • Cable Trays
  • Home Offices
  • Meeting Tables

Technical Details

  • Rated for 110 to 250V, and up to a maximum of 20A
  • Material: ABS-FR; low concentration of heavy metal
  • Power and data are isolated to eliminate interferences
  • Provision for static current discharge
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request
