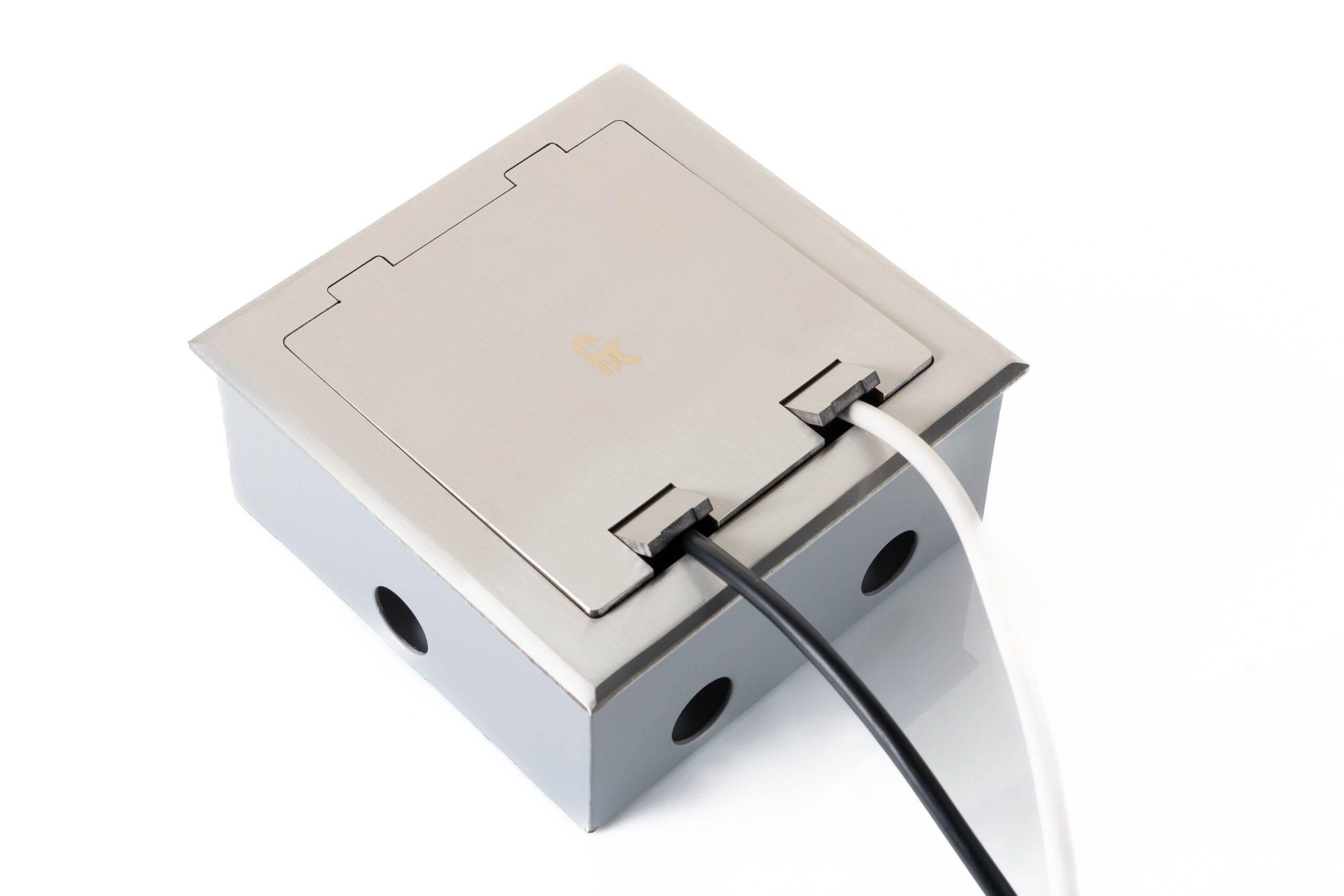

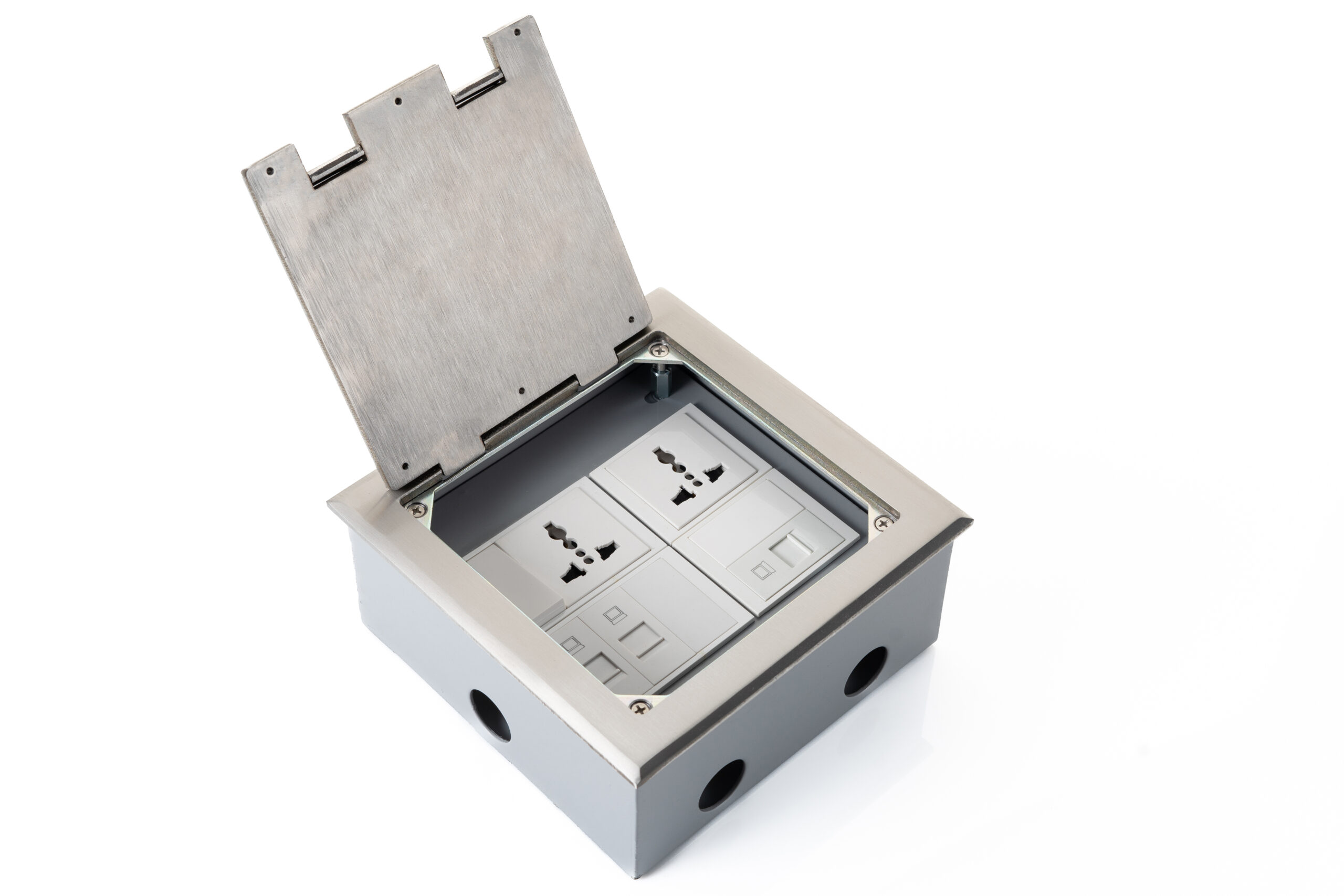

FTC 180KP

FTC 180KP

Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.

Dimension:
 180x180x75mm

Material Description:
Material of the floor box top cover: SS304
Material of the floor box bottom box: MS (C.R)

Technical Specification:
Fixing space: can fit 10modules.
Thickness of floor box top cover: 5mm
Optional hair brush
Optional Soft Close

Thickness of the floor box bottom box: 3mm

Related Products

NETBOX Line

The functional NETBOX Line, with its rounded contours, is a classic built-in desktop solution offering easy access to power, voice, and data sockets.
Its elevated design keeps the unit slightly above the tabletop surface, protecting cables from accidental liquid spills.

Product Specification

  • Sleek design
  • Customizable into various configurations
  • Quick installation with click-stop mechanism
  • Can be interconnected using starter or connector cable
  • Unit is slightly elevated from tabletop surface to protect against liquid spillage
  • Plug & Play technology

Can be combined with features:

  • Monitor Arm (requires a bracket underneath)’
  • Lapguard
  • Grommet hole

Application Range

  • Conference Tables
  • Hotel Rooms
  • Boardroom Tables
  • Executive Desks
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Spot

NETBOX Spot, the smallest power unit, provides a discreet connection point for reliable power and data.
With a minimalist design and a compact 50 mm diameter, it complements all types of furniture and interior styles.
Installed from underneath using screws, it can also be paired with a decorative grommet ring.

Product Specification

  • Sleek, attractive and minimalist design
  • Fitted with a single power point
  • Installation requires 50.5mm grommet hole
  • Unit available with either one power socket, USB Charger or double communication modules suitable for installation of RJ45, RJ11, USB or HDMI couplers
  • Comes with built in Starter Cable

Application Range

  • Training Tables
  • Collaborative Areas
  • Airport Lounge
  • Reception Desks
  • Hotel Rooms

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Aluminum casing is safely grounded against hazardous electrical shock
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Juke

NETBOX Juke is a detachable desktop unit mounted with power and or USB Charger. It is also suitable for lounge application where the unit can be mounted upside down below furniture.

Product Specification

  • 2 or 3 gang modules of your choice
  • Highly flexible and easy to relocate
  • Can be mounted upside down below furniture
  • Unit can be installed anywhere on table-top surface
  • Comes with built-in starter or connector cable in varying length
  • Cable entry from the back of the unit
  • Mounting options: Powerstrip, screw or clamp
  • Plug & Play technology

Application Range

  • Desks
  • Lounge
  • Workstations
  • Hotels
  • Training tables
  • Universities
  • Home Office

NETBOX Drop

NETBOX Drop is a seamless built-in solution for workstations and executive desks, providing an organised hub for your power and data connections. It is designed with a sleek and flush design with a ‘drop’ space, allowing you to store your excess cables temporarily while in use. Accessible from the front, the NETBOX Drop is a convenient and practical solution for powering and connecting devices without the hassle of tangled cords at your workstation.

Product Specification

  • Sleek design
  • Customisable into various configurations
  • Standard model for power, voice and data transmission
  • Can be interconnected using connector cables
  • Quick installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Workstations
  • Executive Desks

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Davis Bus Track System

Applications

  • High-rise buildings
  • Commercial complexes
  • Industrial plants

Characteristics

  • Carefully designed power busways to handle all electrical, thermal, and mechanical load requirements
  • Robust enclosures to ensure optimum heat dissipation
  • Advanced manufacturing with computerised CNC machines for improved precision and accuracy
  • Special epoxy insulation for greater fire resistance
  • Fully mechanical interlocks to prevent tampering and improve safety

TECHNICAL DETAILS

  • Manufactured and tested for compliance with the latest international standards
  • Designed to withstand voltages up to 11kV at frequencies of 60Hz and higher
  • Certified with KEMA/DEKRA and ASTA for protection against short circuits

NETBOX Profilebox Sub

NETBOX Profilebox Sub is a compact; power, data and multimedia unit. Built in durable aluminium finish, the unit is designed for easy under mounting, ideally suited for your workstation, meeting table and home office.

Product Specification

  • Durable and sturdy aluminium profile
  • Individual configuration
  • Customizable up to 35 outlet modules
  • Separate power circuits possible
  • Plug & Play technology

Application Range

  • Workstations
  • Cable Trays
  • Home Offices
  • Meeting Tables

Technical Details

  • Rated for 110 to 250V, and up to a maximum of 20A
  • Material: ABS-FR; low concentration of heavy metal
  • Power and data are isolated to eliminate interferences
  • Provision for static current discharge
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request
