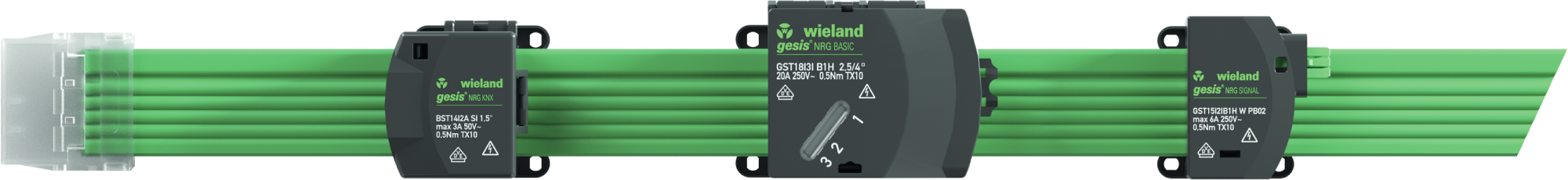

Flat Cables

Retrofitting in the conventional way is a time-consuming business. With the flat cable system, the basis for additional charging stations is established during the initial installation. Once the flat cable is installed, another connecting module simply needs to be added if required. This saves considerable installation. The advantage of this is that the flat cable system can be quickly expanded to include additional charging stations. Often, only a small number of charging stations are needed for initial installation and can go up to 20 charging stations

Related Products

NETBOX Style

NETBOX Style combines clean, straight-lined modern design with high functionality. Its low-profile aluminum surface seamlessly complements all types of furniture systems.
Designed for simple tabletop installation, it integrates effortlessly into a unified work surface.
Its wide range of module combinations supports specialized and customizable solutions. Tool-free click-stop mounting ensures smooth fitting and significant time savings.
NETBOX Style can be connected using a starter or connector cable in various lengths.

Product Specification

  • Sleek and clean design
  • Unit sits flush with table top surface
  • Customizable into various configurations
  • Available in various lengths
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Executive Desks
  • Conference Tables
  • Boardroom tables
  • Meeting Tables
  • Hotel Rooms

Special Combinations

  • Monitor Arm (requires a bracket underneath)
  • Lapguard
  • Grommet Hole

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Axial Comfort

NETBOX Axial Comfort is a built-in power and data unit in an aluminium finish. For increased convenience it is fitted with a spring supported opening mechanism. The new version features a sleeker design with neat end caps. The unit does not protrude below the end caps once opened and fits the previous cut-out size.

Product Specification

  • Unit opens at 60° angle
  • Spring supported cover for easy opening
  • Cable outlet with rubber lips
  • Unit sits flush with mounted surface
  • Available in any length
  • Customizable into various configurations
  • Tool free installation
  • Quick installation with the click-stop mechanism
  • Plug & Play technology

Application Range

  • Executive Desks
  • Workstations
  • Conference Tables
  • Boardroom Tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA6-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Turn Comfort

NETBOX Turn Comfort rotates at the press of a button—either to reveal or conceal the socket outlets.
When in the “closed” position, it sits flush with the mounting surface, maintaining a clean, unobtrusive appearance.
NETBOX Turn Comfort permits access from any angle, making it a highly flexible solution. Since cables run below the table, the unit’s sleek look is enhanced—especially in table tops with a minimum thickness of 10 mm—and it is available in customizable lengths.

Product Specification

  • Sleek and attractive design
  • Unit sits flush with table top surface when retracted
  • Opens automatically with a press on the push button at the side, manual rotation for full display of unit
  • Customizable into various configurations and lengths
  • Accessible from any direction
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Juke

NETBOX Juke is a detachable desktop unit mounted with power and or USB Charger. It is also suitable for lounge application where the unit can be mounted upside down below furniture.

Product Specification

  • 2 or 3 gang modules of your choice
  • Highly flexible and easy to relocate
  • Can be mounted upside down below furniture
  • Unit can be installed anywhere on table-top surface
  • Comes with built-in starter or connector cable in varying length
  • Cable entry from the back of the unit
  • Mounting options: Powerstrip, screw or clamp
  • Plug & Play technology

Application Range

  • Desks
  • Lounge
  • Workstations
  • Hotels
  • Training tables
  • Universities
  • Home Office

NETBOX Drop

NETBOX Drop is a seamless built-in solution for workstations and executive desks, providing an organised hub for your power and data connections. It is designed with a sleek and flush design with a ‘drop’ space, allowing you to store your excess cables temporarily while in use. Accessible from the front, the NETBOX Drop is a convenient and practical solution for powering and connecting devices without the hassle of tangled cords at your workstation.

Product Specification

  • Sleek design
  • Customisable into various configurations
  • Standard model for power, voice and data transmission
  • Can be interconnected using connector cables
  • Quick installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Workstations
  • Executive Desks

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Smart

NETBOX Smart is a detachable desktop mounted power & data unit in aluminium finish.

Product Specification

  • Highly flexible and easy to relocate
  • Power strips allow unit to be installed anywhere on table-top surface
  • Optional: Installation with mounting clamp
  • Customizable into various configurations
  • Direct access to power and data modules
  • Available in various lengths
  • Tool-free installation
  • Comes with built-in starter or connector cable in varying length
  • Plug & Play technology

Application Range

  • Executive Desks
  • Workstations
  • Training tables
  • Hotel Rooms
  • Home Offices

Colours

  • Silver/White
  • Silver/Black
  • Champagne/White
  • Champagne/Black

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request
