Netbox M

Netbox M

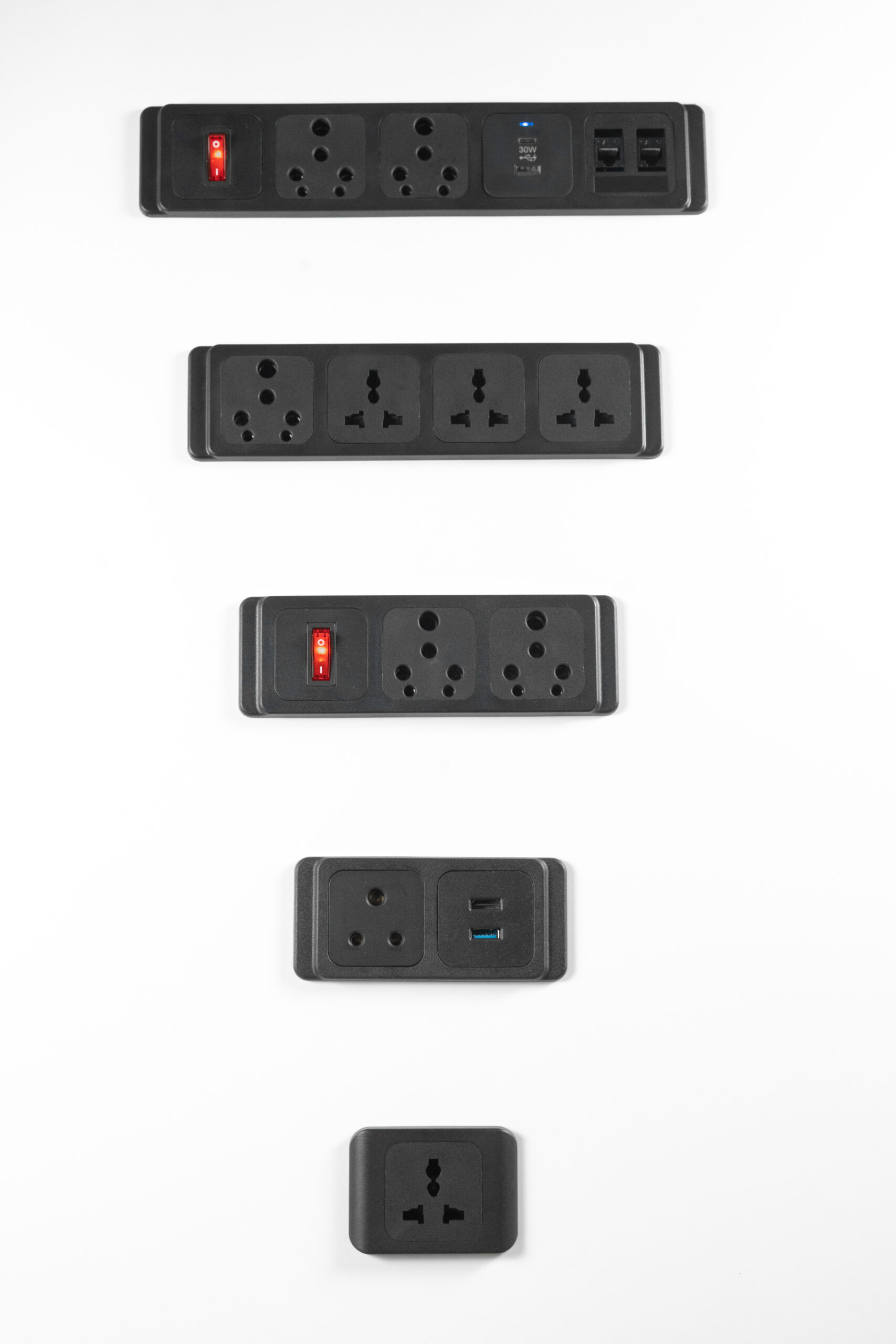

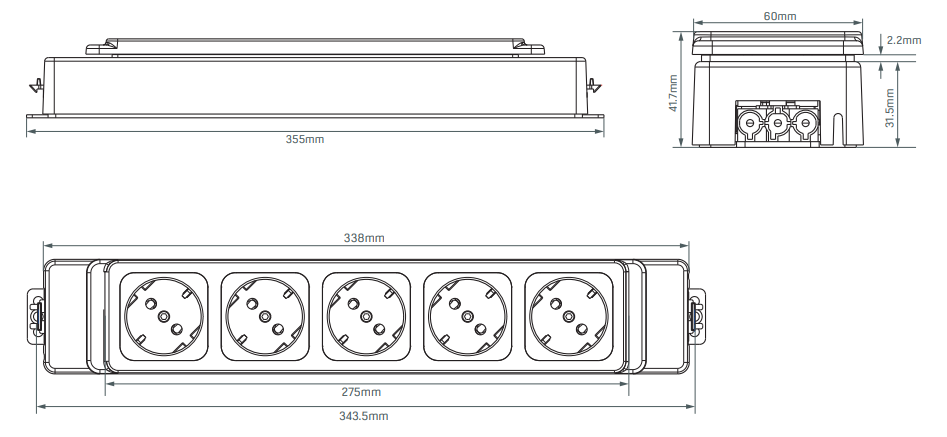

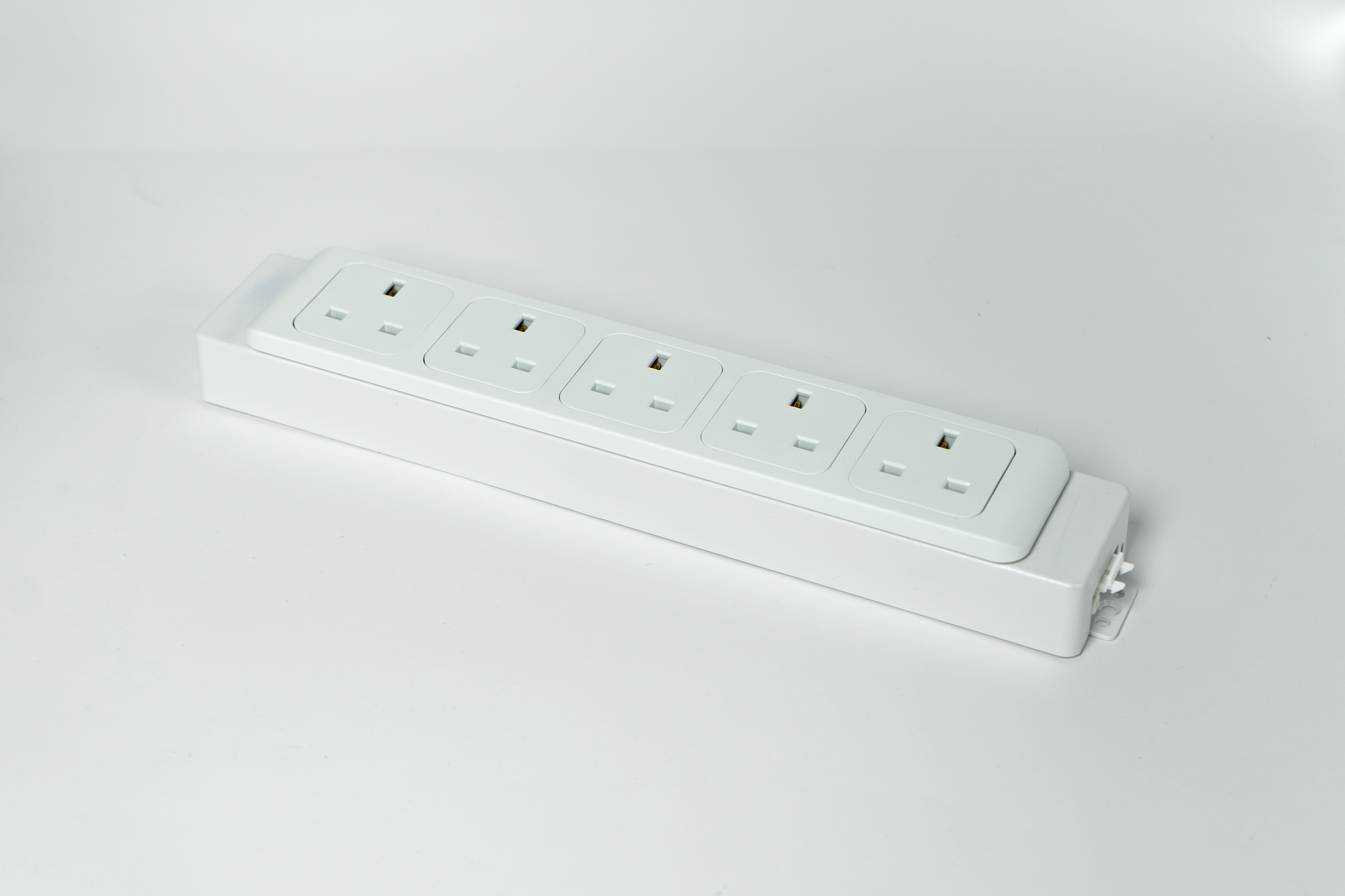

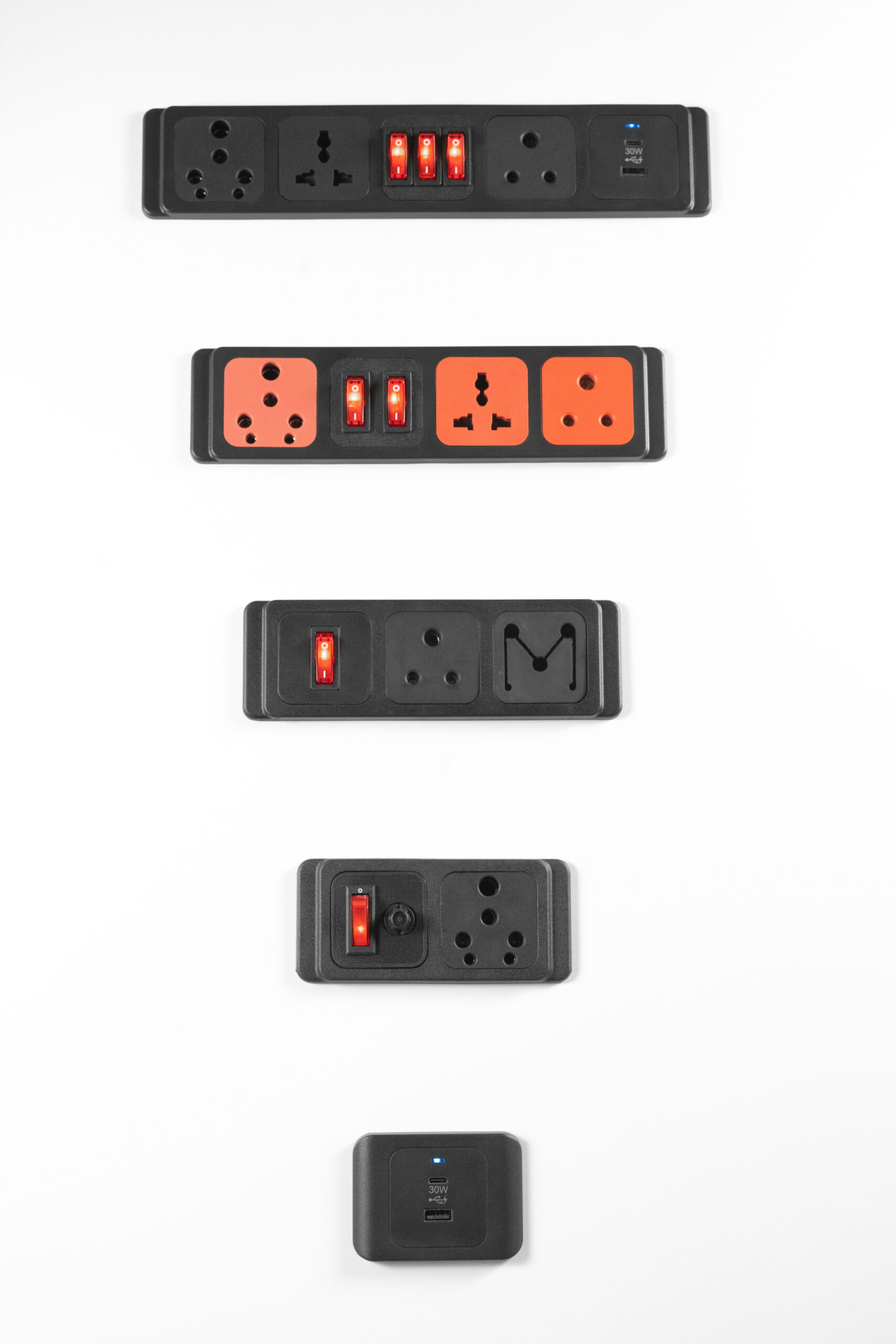

Netbox M ( M1, M2, M3, M4, M5) is a standard power, data and multimedia unit in plastic finish which comes fitted with detachable frame.

Product Specification

  • Functional and cost efficient
  • Standard model for power, voice and data transmission
  • Several NETBOX M can be interconnected using connector cables
  • Can be installed and mounted on any given surface or concealed within partitions and cable trays
  • Plug & Play technology

Application Range

  • Workstations
  • Cable Trays
  • Panel Systems
  • Home Office

Technical Details

  • Rated for 110 to 250V, and up to a maximum of 20A
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Colors

Related Products

NETBOX Style

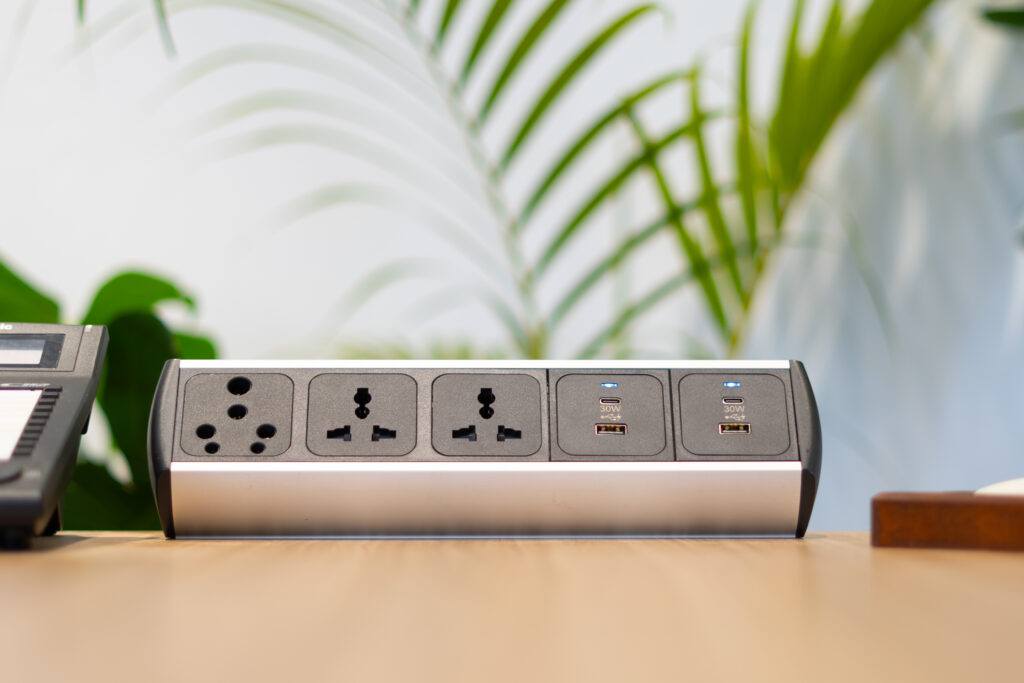

NETBOX Style combines clean, straight-lined modern design with high functionality. Its low-profile aluminum surface seamlessly complements all types of furniture systems.
Designed for simple tabletop installation, it integrates effortlessly into a unified work surface.
Its wide range of module combinations supports specialized and customizable solutions. Tool-free click-stop mounting ensures smooth fitting and significant time savings.
NETBOX Style can be connected using a starter or connector cable in various lengths.

Product Specification

  • Sleek and clean design
  • Unit sits flush with table top surface
  • Customizable into various configurations
  • Available in various lengths
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Executive Desks
  • Conference Tables
  • Boardroom tables
  • Meeting Tables
  • Hotel Rooms

Special Combinations

  • Monitor Arm (requires a bracket underneath)
  • Lapguard
  • Grommet Hole

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Flush

NETBOX Flush is a built-in unit with dual module of your choice. Designed to blend with any environment seamlessly, the NETBOX Flush sits flush with your workspace surface. It features a rounded edge and aesthetic contemporary look.

Product Specification

  • Partition walls in offices, exhibition stalls, and training rooms.
  • Static table configurations.
  • Fitted with two modules of your choice
  • Comes with built in starter cable
  • Minimalist and sleek design
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Training Tables
  • Collaborative Areas
  • Airport Lounge
  • Receiption Desks
  • Hotel Rooms

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Drop

NETBOX Drop is a seamless built-in solution for workstations and executive desks, providing an organised hub for your power and data connections. It is designed with a sleek and flush design with a ‘drop’ space, allowing you to store your excess cables temporarily while in use. Accessible from the front, the NETBOX Drop is a convenient and practical solution for powering and connecting devices without the hassle of tangled cords at your workstation.

Product Specification

  • Sleek design
  • Customisable into various configurations
  • Standard model for power, voice and data transmission
  • Can be interconnected using connector cables
  • Quick installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Workstations
  • Executive Desks

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Starfish

NETBOX Starfish is an on-table unit with easy access to power, data and multimedia outlets. A NETBOX Starfish with built-in wireless charger is also available. This unit features a unique design and is suitable for installation on a 80mm grommet. NETBOX Starfish is ideal for conference and meeting tables.

NETBOX Starfish is an on-table connectivity unit offering easy access to power, data, and multimedia outlets.
Designed for installation on an 80 mm grommet, it features a unique shape ideal for conference and meeting tables.

Product Specification

  • Customised configuration up to 6 outlets
  • Direct access to power, data and multimedia modules
  • Comes with built-in starter cable or connector cable in varying length
  • Installation requires 80mm grommet hole
  • Tool free and quick installation with the click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom Tables
  • Meeting Tables

Colour

  • Black
  • White/Black

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Revos

Revos are heavy duty connectors and are specifically designed for use in tough environment conditions. The main areas of use are in automotive industry, packaging machinery and equipment, instrumentation, control, and automation equipment.

Their housing protects against mechanical impact and prevent entry of spray water and dust. The system’s sub-assemblies undergo a quality check in-house, which simplifies installation and saves time at the end location.

NETBOX Turn

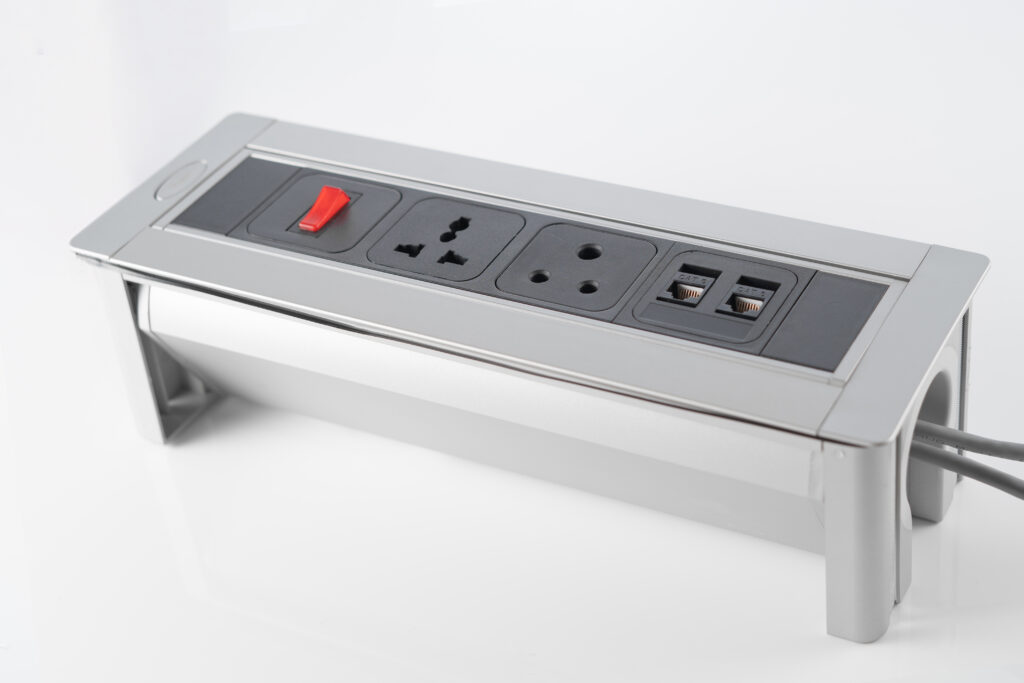

NETBOX Turn is A. & H. Meyer’s signature built-in unit. It can be manually rotated to either reveal or conceal the socket outlets.
When rotated to the “closed” position, the unit sits flush with the surface into which it is mounted. This allows for an unobtrusive surface top when the unit is not in use.

Product Specification

  • Sleek and attractive design
  • Unit sits flush with table top surface when retracted
  • Manual rotation for easy access
  • Customizable into various configurations and lengths
  • Accessible from any direction
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request
