NETBOX Turn

NETBOX Turn

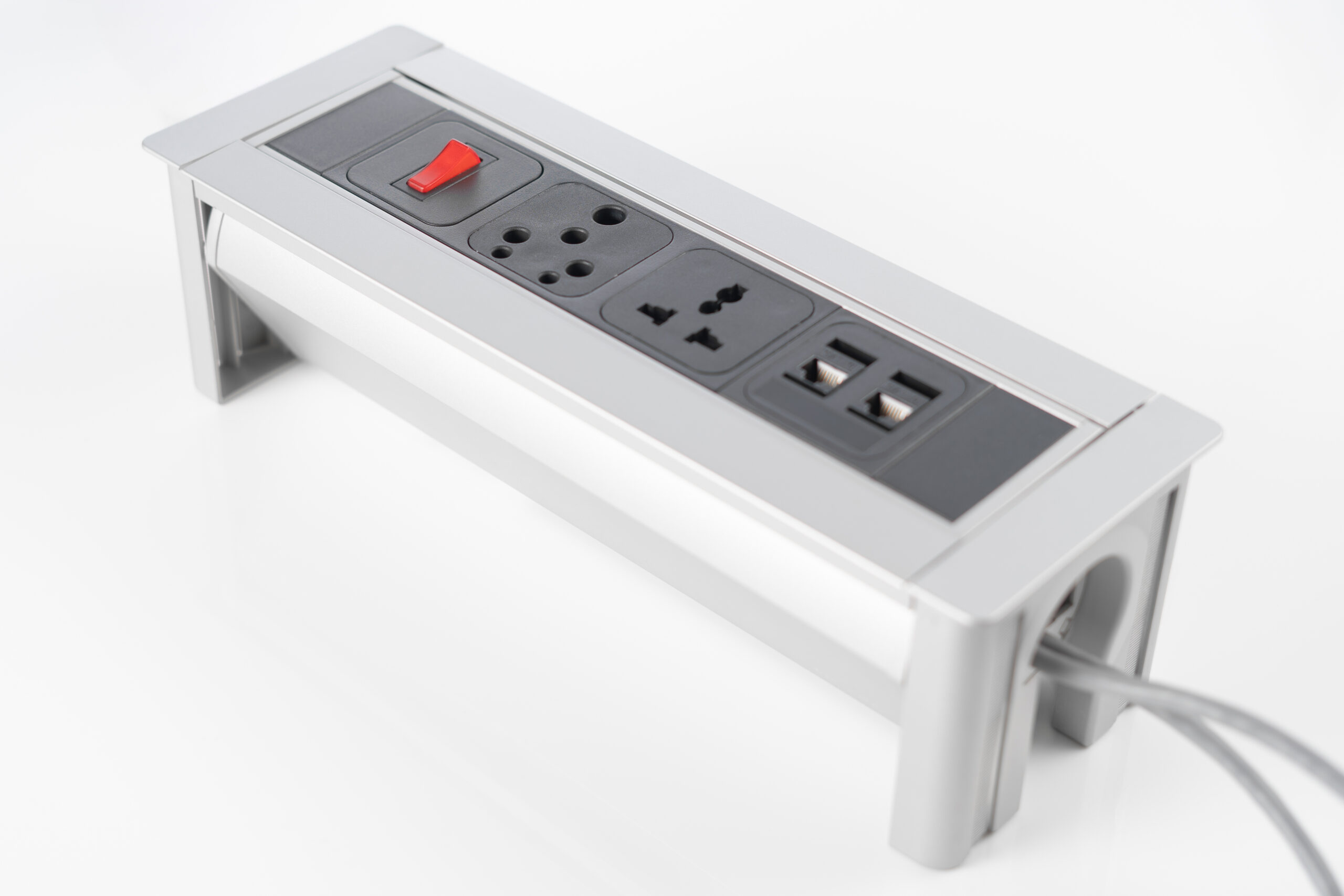

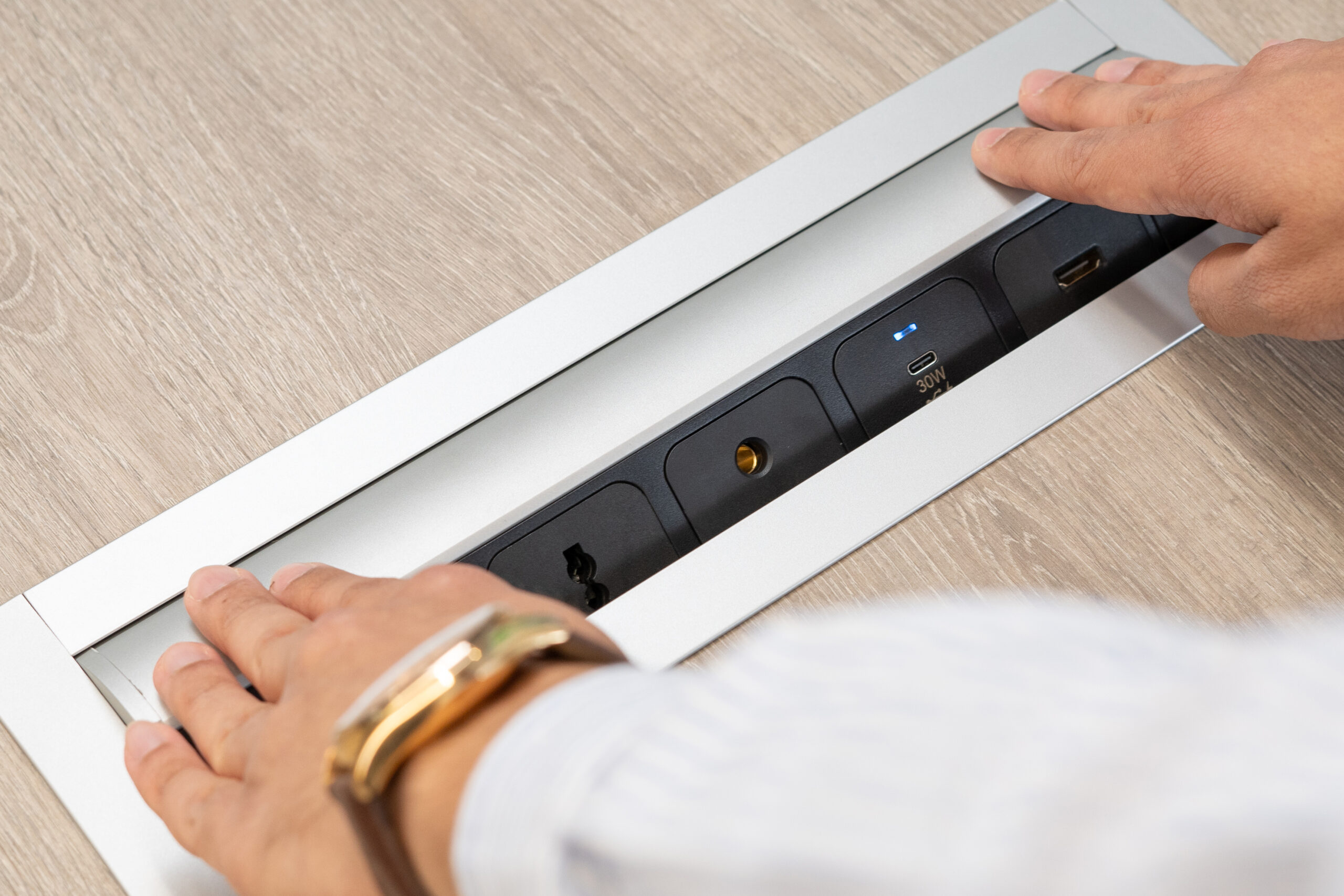

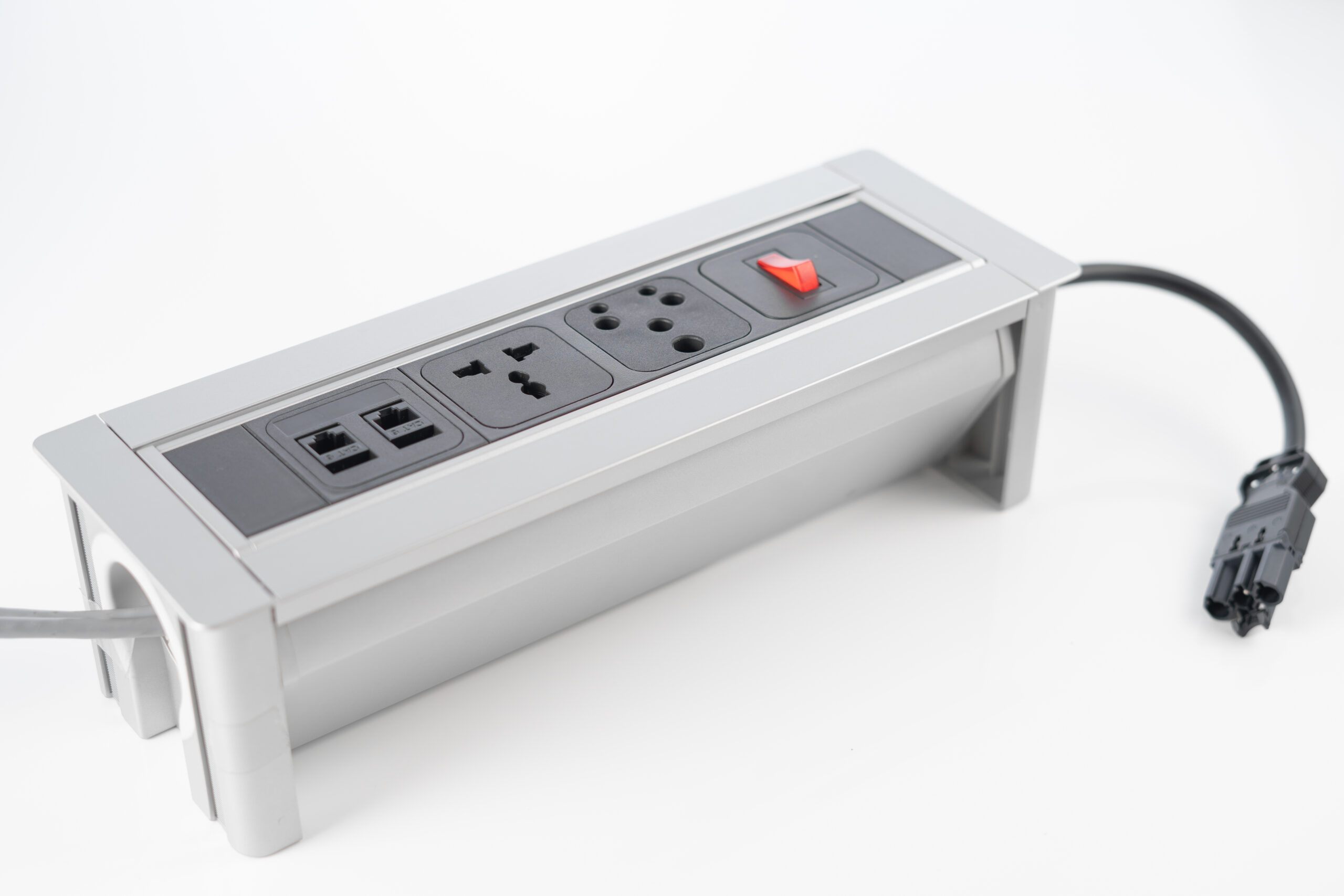

NETBOX Turn is A. & H. Meyer’s signature built-in unit. It can be manually rotated to either reveal or conceal the socket outlets.
When rotated to the “closed” position, the unit sits flush with the surface into which it is mounted. This allows for an unobtrusive surface top when the unit is not in use.

Product Specification

  • Sleek and attractive design
  • Unit sits flush with table top surface when retracted
  • Opens automatically with a press on the push button at the side, manual rotation for full display of unit
  • Customizable into various configurations and lengths
  • Accessible from any direction
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Colors

Related Products

NETBOX Leaf

The NETBOX Leaf is a surface-mounted unit designed to optimize space and adapt to desk-sharing environments thanks to its compact footprint and elegant form.
Easy to install and use, it can be securely mounted using Powerstrips or a table clamp, offering durable and efficient access to power and communication outlets.
This unit can be configured with 250 module options and comes hardwired with a built-in starter or connector cable of customizable length.
Inspired by modern organic aesthetics, the NETBOX Leaf features fluid lines and dynamic curves with end-caps shaped like a leaf.

Product Specification

  • Highly flexible and easy to relocate
  • Powerstrips allow unit to be installed anywhere on table-top surface
  • Optional: Installation with mounting clamp
  • Customizable into various length and configurations
  • Direct access to power and data modules
  • Comes with built-in starter or connector cable in varying length
  • Plug & Play technology

Application Range

  • Desks
  • Hotels
  • Workstations
  • Universities
  • Training tables
  • Home Offices

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Netbox M

Netbox M ( M1, M2, M3, M4, M5) is a standard power, data and multimedia unit in plastic finish which comes fitted with detachable frame.

Product Specification

  • Functional and cost efficient
  • Standard model for power, voice and data transmission
  • Several NETBOX M can be interconnected using connector cables
  • Can be installed and mounted on any given surface or concealed within partitions and cable trays
  • Plug & Play technology

Application Range

  • Workstations
  • Cable Trays
  • Panel Systems
  • Home Office

Technical Details

  • Rated for 110 to 250V, and up to a maximum of 20A
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Spot

NETBOX Spot, the smallest power unit, provides a discreet connection point for reliable power and data.
With a minimalist design and a compact 50 mm diameter, it complements all types of furniture and interior styles.
Installed from underneath using screws, it can also be paired with a decorative grommet ring.

Product Specification

  • Sleek, attractive and minimalist design
  • Fitted with a single power point
  • Installation requires 50.5mm grommet hole
  • Unit available with either one power socket, USB Charger or double communication modules suitable for installation of RJ45, RJ11, USB or HDMI couplers
  • Comes with built in Starter Cable

Application Range

  • Training Tables
  • Collaborative Areas
  • Airport Lounge
  • Reception Desks
  • Hotel Rooms

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Aluminum casing is safely grounded against hazardous electrical shock
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Starfish

NETBOX Starfish is an on-table unit with easy access to power, data and multimedia outlets. A NETBOX Starfish with built-in wireless charger is also available. This unit features a unique design and is suitable for installation on a 80mm grommet. NETBOX Starfish is ideal for conference and meeting tables.

NETBOX Starfish is an on-table connectivity unit offering easy access to power, data, and multimedia outlets.
Designed for installation on an 80 mm grommet, it features a unique shape ideal for conference and meeting tables.

Product Specification

  • Customised configuration up to 6 outlets
  • Direct access to power, data and multimedia modules
  • Comes with built-in starter cable or connector cable in varying length
  • Installation requires 80mm grommet hole
  • Tool free and quick installation with the click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom Tables
  • Meeting Tables

Colour

  • Black
  • White/Black

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Podis

The tray cable system podis® CON is the ideal solution for the decentralized, simple and flexible energy distribution for machines and systems with large dimensions or interlinking. The safe insulation-penetrating technique ensures simple replacement, relocation and addition of modules – flexible energy in every position.

NETBOX Profilebox Sub

NETBOX Profilebox Sub is a compact; power, data and multimedia unit. Built in durable aluminium finish, the unit is designed for easy under mounting, ideally suited for your workstation, meeting table and home office.

Product Specification

  • Durable and sturdy aluminium profile
  • Individual configuration
  • Customizable up to 35 outlet modules
  • Separate power circuits possible
  • Optional: Male and female connectors in same end cap
  • Plug & Play technology

Application Range

  • Workstations
  • Cable Trays
  • Home Offices
  • Meeting Tables

Technical Details

  • Rated for 110 to 250V, and up to a maximum of 20A
  • Material: ABS-FR; low concentration of heavy metal
  • Power and data are isolated to eliminate interferences
  • Provision for static current discharge
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request
