NETBOX Drop

NETBOX Drop

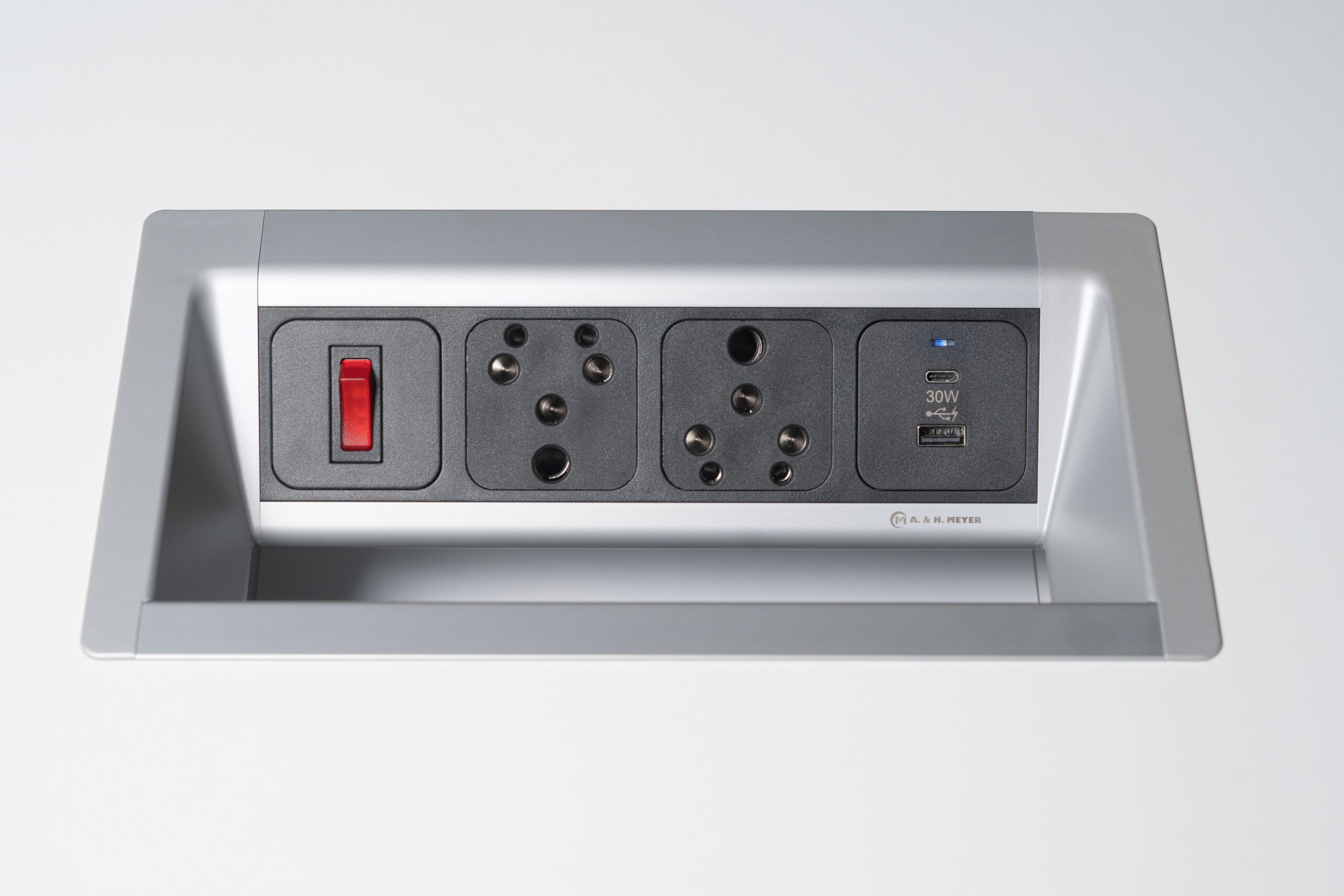

NETBOX Drop is a seamless built-in solution for workstations and executive desks, providing an organised hub for your power and data connections. It is designed with a sleek and flush design with a ‘drop’ space, allowing you to store your excess cables temporarily while in use. Accessible from the front, the NETBOX Drop is a convenient and practical solution for powering and connecting devices without the hassle of tangled cords at your workstation.

Product Specification

  • Sleek design
  • Customisable into various configurations
  • Standard model for power, voice and data transmission
  • Can be interconnected using connector cables
  • Quick installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Workstations
  • Executive Desks

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Colors

Related Products

NETBOX Axial Comfort

NETBOX Axial Comfort is a built-in power and data unit in an aluminium finish. For increased convenience it is fitted with a spring supported opening mechanism. The new version features a sleeker design with neat end caps. The unit does not protrude below the end caps once opened and fits the previous cut-out size.

Product Specification

  • Unit opens at 60° angle
  • Spring supported cover for easy opening
  • Cable outlet with rubber lips
  • Unit sits flush with mounted surface
  • Available in any length
  • Customizable into various configurations
  • Tool free installation
  • Quick installation with the click-stop mechanism
  • Plug & Play technology

Application Range

  • Executive Desks
  • Workstations
  • Conference Tables
  • Boardroom Tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA6-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Netbox M

Netbox M ( M1, M2, M3, M4, M5) is a standard power, data and multimedia unit in plastic finish which comes fitted with detachable frame.

Product Specification

  • Functional and cost efficient
  • Standard model for power, voice and data transmission
  • Several NETBOX M can be interconnected using connector cables
  • Can be installed and mounted on any given surface or concealed within partitions and cable trays
  • Plug & Play technology

Application Range

  • Workstations
  • Cable Trays
  • Panel Systems
  • Home Office

Technical Details

  • Rated for 110 to 250V, and up to a maximum of 20A
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Spot

NETBOX Spot, the smallest power unit, provides a discreet connection point for reliable power and data.
With a minimalist design and a compact 50 mm diameter, it complements all types of furniture and interior styles.
Installed from underneath using screws, it can also be paired with a decorative grommet ring.

Product Specification

  • Sleek, attractive and minimalist design
  • Fitted with a single power point
  • Installation requires 50.5mm grommet hole
  • Unit available with either one power socket, USB Charger or double communication modules suitable for installation of RJ45, RJ11, USB or HDMI couplers
  • Comes with built in Starter Cable

Application Range

  • Training Tables
  • Collaborative Areas
  • Airport Lounge
  • Reception Desks
  • Hotel Rooms

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Aluminum casing is safely grounded against hazardous electrical shock
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Davis Bus Track System

Applications

  • High-rise buildings
  • Commercial complexes
  • Industrial plants

Characteristics

  • Carefully designed power busways to handle all electrical, thermal, and mechanical load requirements
  • Robust enclosures to ensure optimum heat dissipation
  • Advanced manufacturing with computerised CNC machines for improved precision and accuracy
  • Special epoxy insulation for greater fire resistance
  • Fully mechanical interlocks to prevent tampering and improve safety

TECHNICAL DETAILS

  • Manufactured and tested for compliance with the latest international standards
  • Designed to withstand voltages up to 11kV at frequencies of 60Hz and higher
  • Certified with KEMA/DEKRA and ASTA for protection against short circuits

6620A

The 6620A CEE Floor Box from BS Bodensteckdosen Systemtechnik is a robust and versatile power distribution solution designed for outdoor environments.

  • Material and Build: The housing is constructed from 3 mm thick stainless steel and it features a 20 mm thick anodized aluminum lid, ensuring durability and resistance to environmental factors.
  • Design: The hinged lid is lockable with a tool and includes a gas pressure spring for assisted opening. It can be closed securely even with plugs inserted, providing protection and convenience.
  • Dimensions: The floor box measures 306 mm in width, 210 mm in height, and 500 mm in depth, requiring a floor installation depth of 210 mm.
  • Load Capacity: Designed to withstand surface loads up to 6.5 tons, making it suitable for areas with vehicular traffic, including trucks.
  • Protection Class: Rated at IP67 when not in use, offering protection against dust and water ingress.

The 6620A CEE Floor Box is engineered for demanding environments, offering a reliable and secure solution for power distribution in outdoor settings.

Dimension:
500×305,5×210 mm

Material Description:
Stainless steel and anodized aluminum

Technical Specification:
500 x 305, 5x 210 mm Supply line:
2x front M32, 1x below drainage hole 50 mm

Netbox Axial

NETBOX Axial is a built-in solution that closes flat and flush against its mounted surface. It opens from the front to reveal power, voice, and data sockets whenever required.
The rubber lip allows cables to move to and from devices such as computers, telephones, and multimedia equipment, while the unit remains closed even when in use.

Product Specification

  • Unit opens at 60° angle
  • Spring supported cover for easy opening
  • Cable outlet with rubber lips
  • Unit sits flush with mounted surface
  • Available in any length
  • Customizable into various configurations
  • Tool free installation
  • Quick installation with the click-stop mechanism
  • Plug & Play technology

Application Range

  • Executive Desks
  • Workstations
  • Conference Tables
  • Boardroom Tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA6-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request
