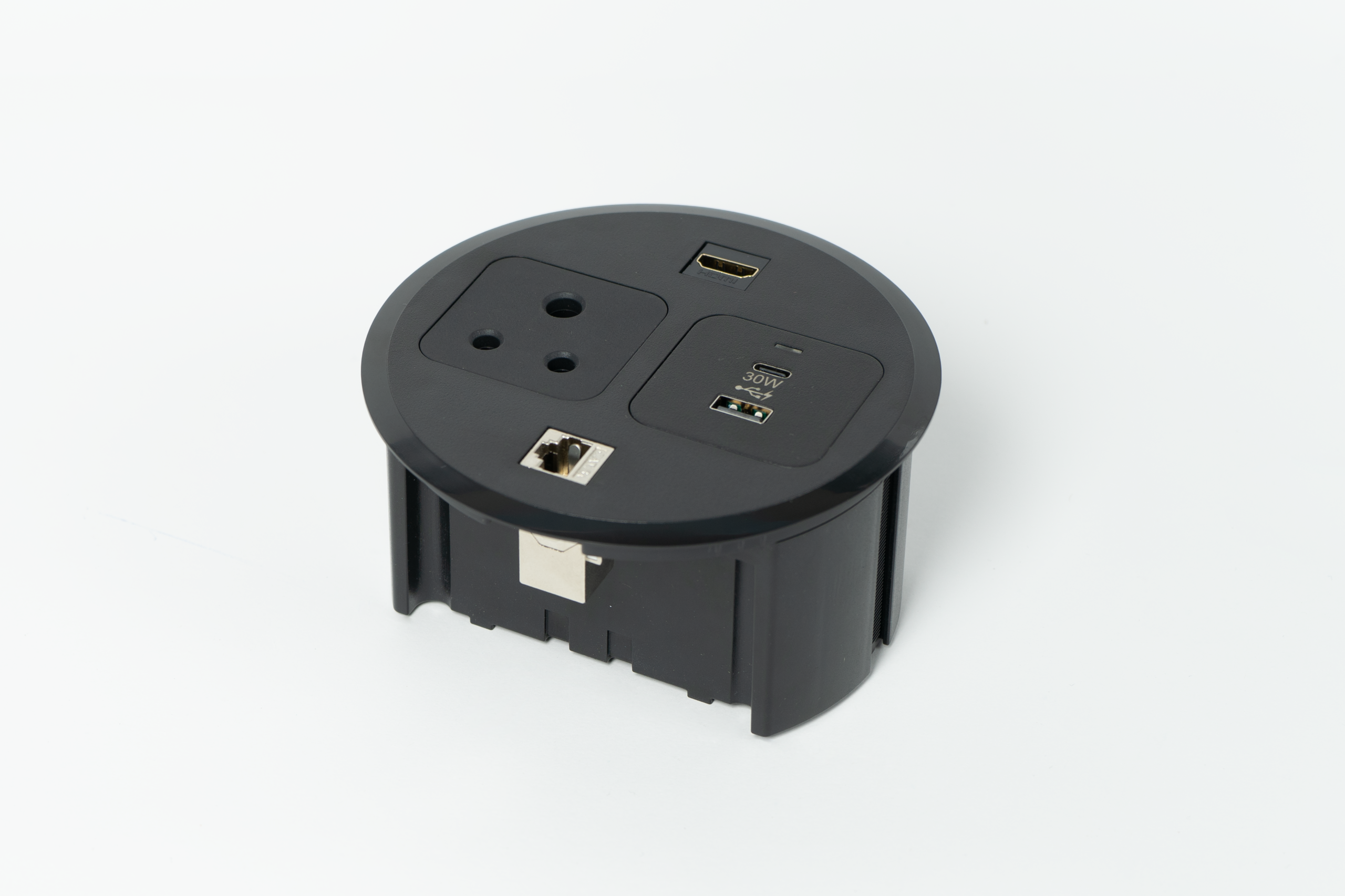

NETBOX Point Duplex

NETBOX Point Duplex

NETBOX Point Duplex is a built-in unit for installation in 120mm grommet. This unit features 2 power sockets alongside the flexibility of 2 multimedia modules, allowing you to tailor your connectivity experience to your choice. Ideal for round meeting tables, lounges, and workstations.

Product Specification

  • Fitted with dual power point or USB Charger with 2 communication modules
  • Communication module choices: Data coupler / HDMI coupler / USB coupler
  • Comes with built in starter cable
  • Sleek and attractive design

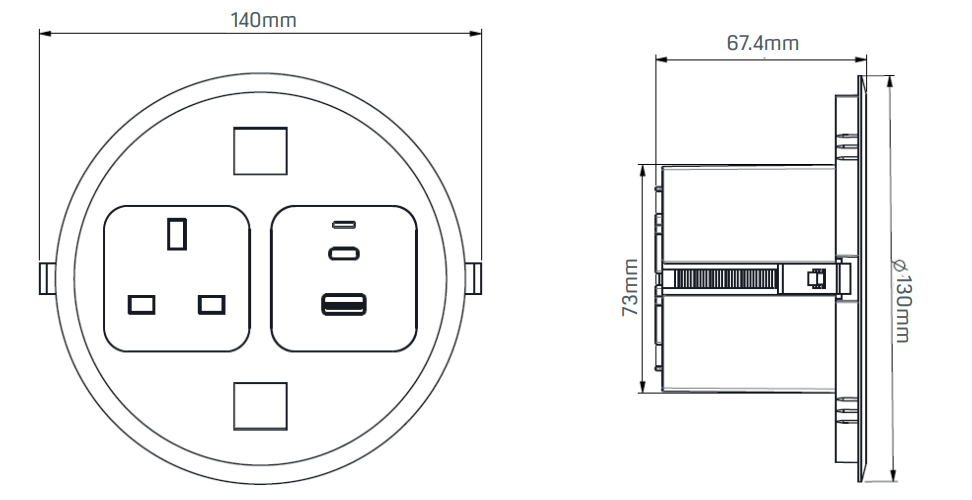

  • Installation requires 120mm grommet hole
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Training Tables
  • Receiption Desks
  • Hotel Rooms
  • Collaborative Areas
  • Airport Lounge

Colour

  • Black
  • White

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Colors

Related Products

NETBOX Flush

NETBOX Flush is a built-in unit with dual module of your choice. Designed to blend with any environment seamlessly, the NETBOX Flush sits flush with your workspace surface. It features a rounded edge and aesthetic contemporary look.

Product Specification

  • Partition walls in offices, exhibition stalls, and training rooms.
  • Static table configurations.
  • Fitted with two modules of your choice
  • Comes with built in starter cable
  • Minimalist and sleek design
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Training Tables
  • Collaborative Areas
  • Airport Lounge
  • Receiption Desks
  • Hotel Rooms

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Starfish

NETBOX Starfish is an on-table unit with easy access to power, data and multimedia outlets. A NETBOX Starfish with built-in wireless charger is also available. This unit features a unique design and is suitable for installation on a 80mm grommet. NETBOX Starfish is ideal for conference and meeting tables.

NETBOX Starfish is an on-table connectivity unit offering easy access to power, data, and multimedia outlets.
Designed for installation on an 80 mm grommet, it features a unique shape ideal for conference and meeting tables.

Product Specification

  • Customised configuration up to 6 outlets
  • Direct access to power, data and multimedia modules
  • Comes with built-in starter cable or connector cable in varying length
  • Installation requires 80mm grommet hole
  • Tool free and quick installation with the click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom Tables
  • Meeting Tables

Colour

  • Black
  • White/Black

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Davis Bus Track System

Applications

  • High-rise buildings
  • Commercial complexes
  • Industrial plants

Characteristics

  • Carefully designed power busways to handle all electrical, thermal, and mechanical load requirements
  • Robust enclosures to ensure optimum heat dissipation
  • Advanced manufacturing with computerised CNC machines for improved precision and accuracy
  • Special epoxy insulation for greater fire resistance
  • Fully mechanical interlocks to prevent tampering and improve safety

TECHNICAL DETAILS

  • Manufactured and tested for compliance with the latest international standards
  • Designed to withstand voltages up to 11kV at frequencies of 60Hz and higher
  • Certified with KEMA/DEKRA and ASTA for protection against short circuits

6620A

The 6620A CEE Floor Box from BS Bodensteckdosen Systemtechnik is a robust and versatile power distribution solution designed for outdoor environments.

  • Material and Build: The housing is constructed from 3 mm thick stainless steel and it features a 20 mm thick anodized aluminum lid, ensuring durability and resistance to environmental factors.
  • Design: The hinged lid is lockable with a tool and includes a gas pressure spring for assisted opening. It can be closed securely even with plugs inserted, providing protection and convenience.
  • Dimensions: The floor box measures 306 mm in width, 210 mm in height, and 500 mm in depth, requiring a floor installation depth of 210 mm.
  • Load Capacity: Designed to withstand surface loads up to 6.5 tons, making it suitable for areas with vehicular traffic, including trucks.
  • Protection Class: Rated at IP67 when not in use, offering protection against dust and water ingress.

The 6620A CEE Floor Box is engineered for demanding environments, offering a reliable and secure solution for power distribution in outdoor settings.

Dimension:
500×305,5×210 mm

Material Description:
Stainless steel and anodized aluminum

Technical Specification:
500 x 305, 5x 210 mm Supply line:
2x front M32, 1x below drainage hole 50 mm

FTC250CKP

Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.

Dimension:
 250x180x75mm

Material Description:
Material of the floor box top cover: SS304
Material of the floor box bottom box: MS (C.R)

Technical Specification:
Fixing space: can fit 12modules.
Thickness of floor box top cover: 5mm

Thickness of the floor box bottom box: 3mm

NETBOX Profilebox Sub

NETBOX Profilebox Sub is a compact; power, data and multimedia unit. Built in durable aluminium finish, the unit is designed for easy under mounting, ideally suited for your workstation, meeting table and home office.

Product Specification

  • Durable and sturdy aluminium profile
  • Individual configuration
  • Customizable up to 35 outlet modules
  • Separate power circuits possible
  • Optional: Male and female connectors in same end cap
  • Plug & Play technology

Application Range

  • Workstations
  • Cable Trays
  • Home Offices
  • Meeting Tables

Technical Details

  • Rated for 110 to 250V, and up to a maximum of 20A
  • Material: ABS-FR; low concentration of heavy metal
  • Power and data are isolated to eliminate interferences
  • Provision for static current discharge
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request
