NETBOX Style

NETBOX Style

NETBOX Style combines clean, straight-lined modern design with high functionality. Its low-profile aluminum surface seamlessly complements all types of furniture systems.
Designed for simple tabletop installation, it integrates effortlessly into a unified work surface.
Its wide range of module combinations supports specialized and customizable solutions. Tool-free click-stop mounting ensures smooth fitting and significant time savings.
NETBOX Style can be connected using a starter or connector cable in various lengths.

Product Specification

  • Sleek and clean design
  • Unit sits flush with table top surface
  • Customizable into various configurations
  • Available in various lengths
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Executive Desks
  • Conference Tables
  • Boardroom tables
  • Meeting Tables
  • Hotel Rooms

Special Combinations

  • Monitor Arm (requires a bracket underneath)
  • Lapguard
  • Grommet Hole

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Colors

Related Products

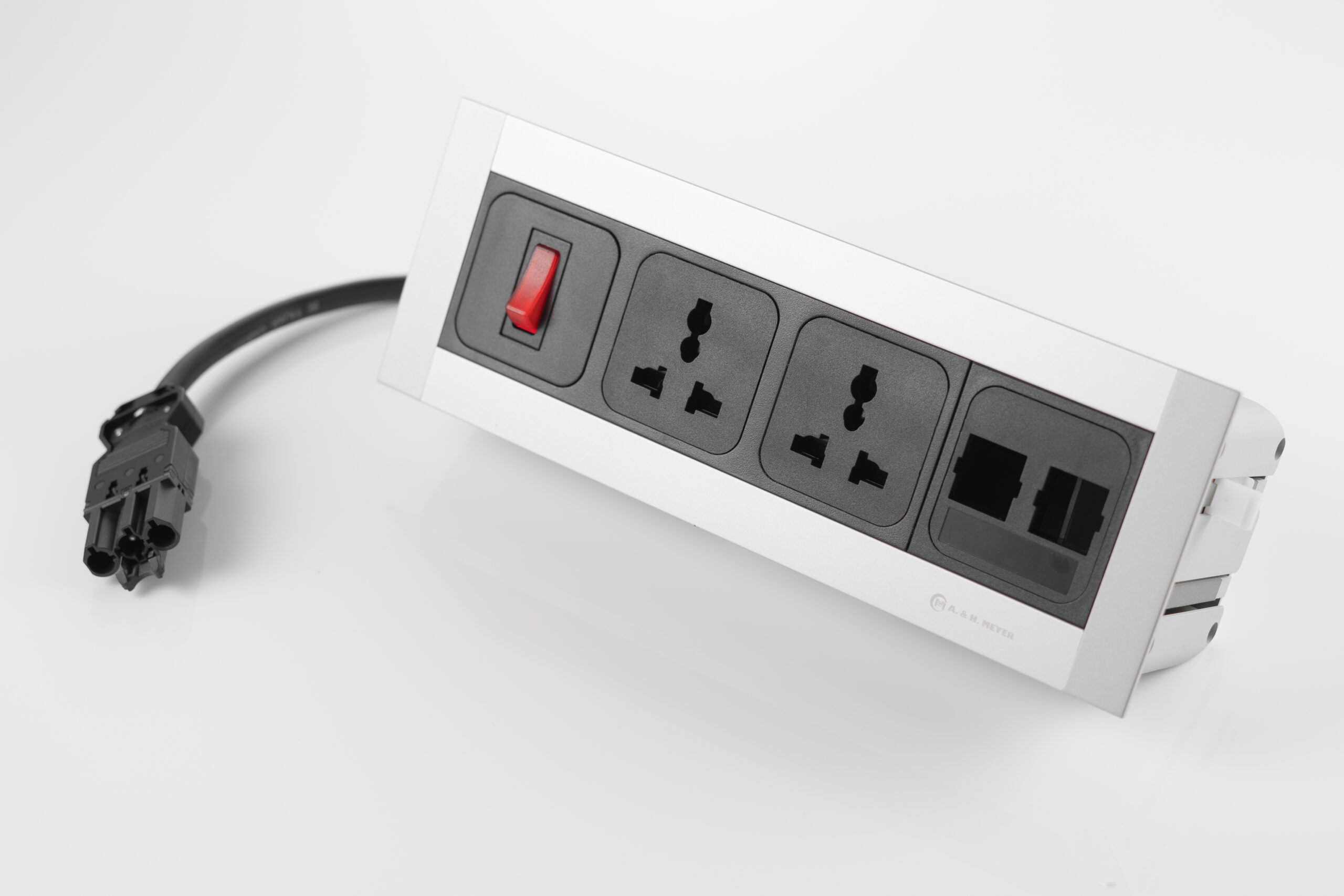

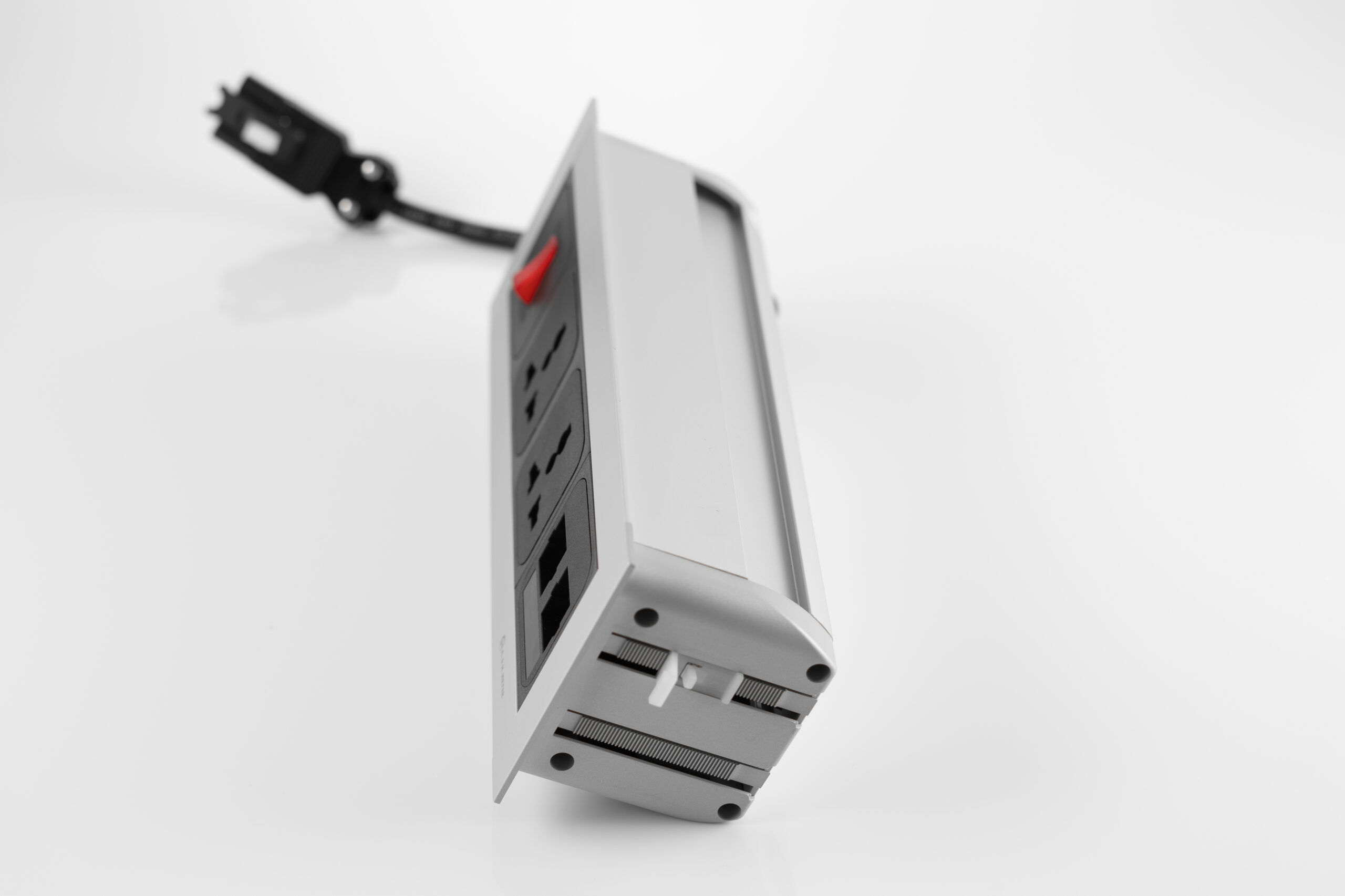

NETBOX Juke

NETBOX Juke is a detachable desktop unit mounted with power and or USB Charger. It is also suitable for lounge application where the unit can be mounted upside down below furniture.

Product Specification

  • 2 or 3 gang modules of your choice
  • Highly flexible and easy to relocate
  • Can be mounted upside down below furniture
  • Unit can be installed anywhere on table-top surface
  • Comes with built-in starter or connector cable in varying length
  • Cable entry from the back of the unit
  • Mounting options: Powerstrip, screw or clamp
  • Plug & Play technology

Application Range

  • Desks
  • Lounge
  • Workstations
  • Hotels
  • Training tables
  • Universities
  • Home Office

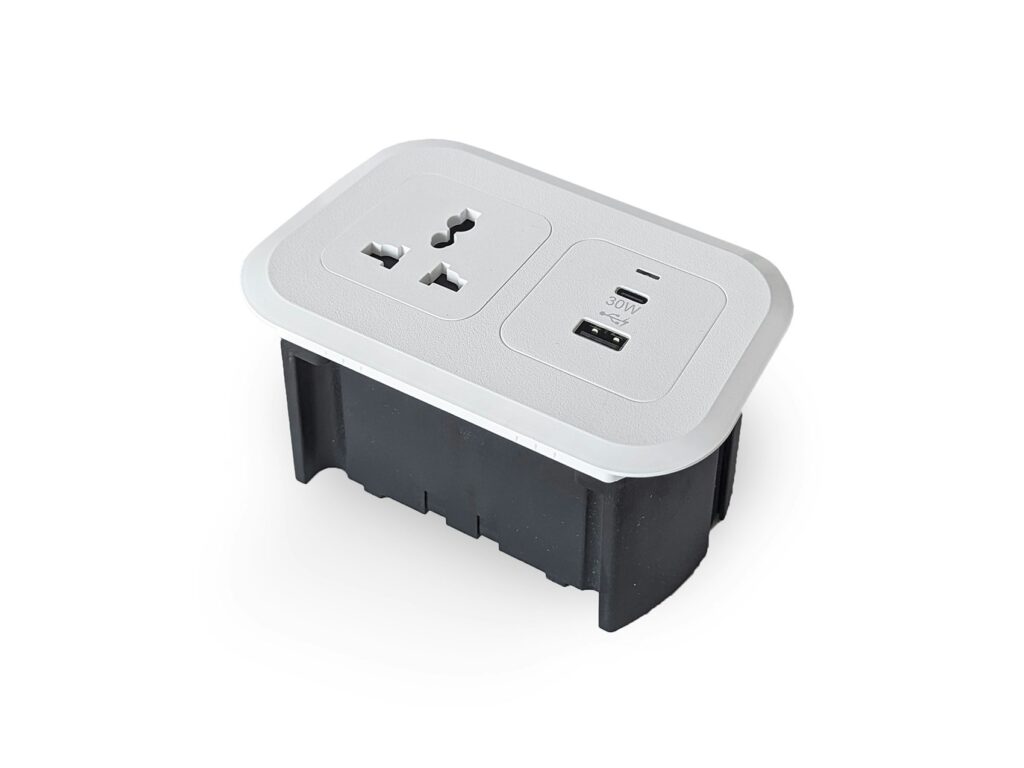

NETBOX Flush

NETBOX Flush is a built-in unit with dual module of your choice. Designed to blend with any environment seamlessly, the NETBOX Flush sits flush with your workspace surface. It features a rounded edge and aesthetic contemporary look.

Product Specification

  • Partition walls in offices, exhibition stalls, and training rooms.
  • Static table configurations.
  • Fitted with two modules of your choice
  • Comes with built in starter cable
  • Minimalist and sleek design
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Training Tables
  • Collaborative Areas
  • Airport Lounge
  • Receiption Desks
  • Hotel Rooms

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

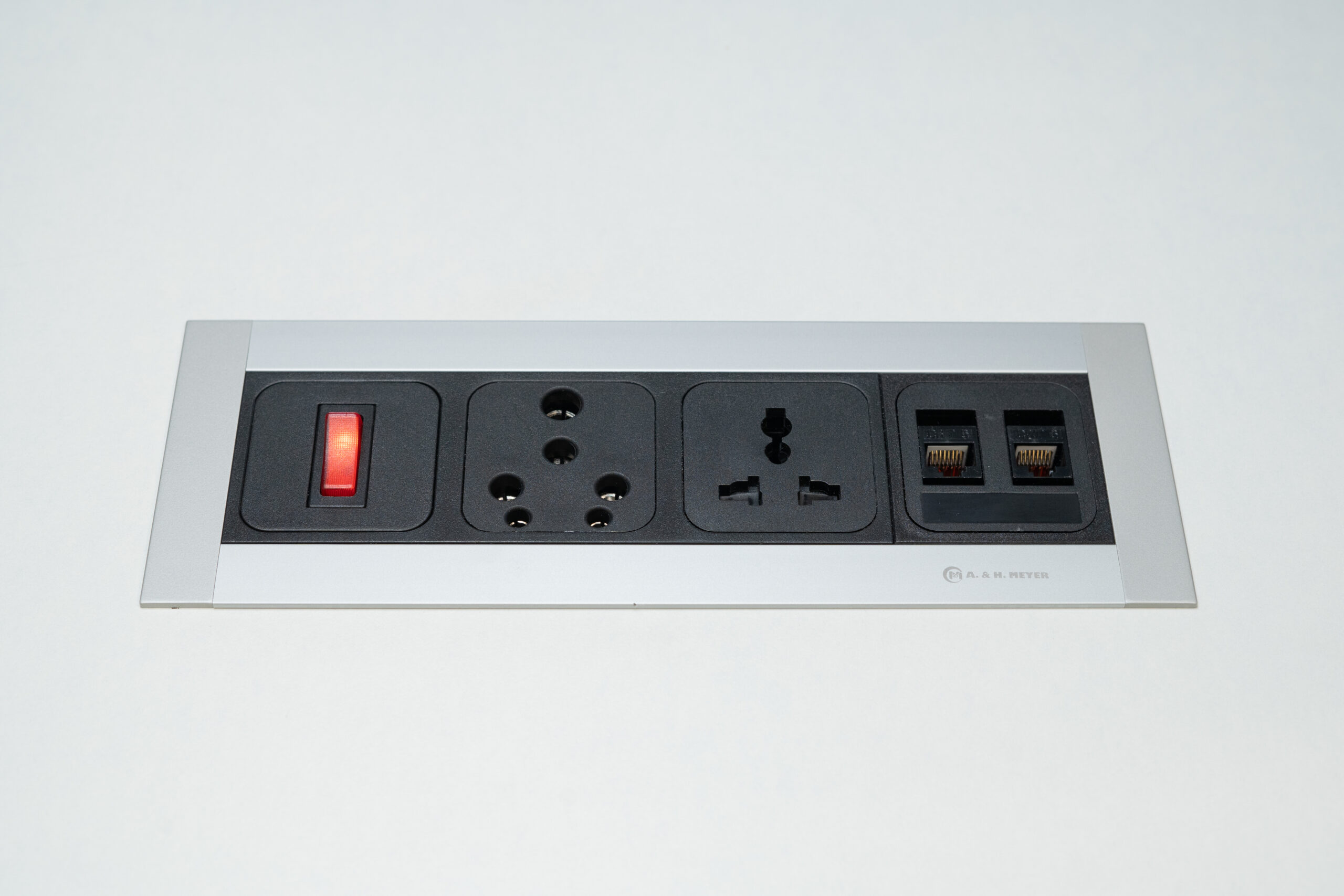

NETBOX Drop

NETBOX Drop is a seamless built-in solution for workstations and executive desks, providing an organised hub for your power and data connections. It is designed with a sleek and flush design with a ‘drop’ space, allowing you to store your excess cables temporarily while in use. Accessible from the front, the NETBOX Drop is a convenient and practical solution for powering and connecting devices without the hassle of tangled cords at your workstation.

Product Specification

  • Sleek design
  • Customisable into various configurations
  • Standard model for power, voice and data transmission
  • Can be interconnected using connector cables
  • Quick installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Workstations
  • Executive Desks

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

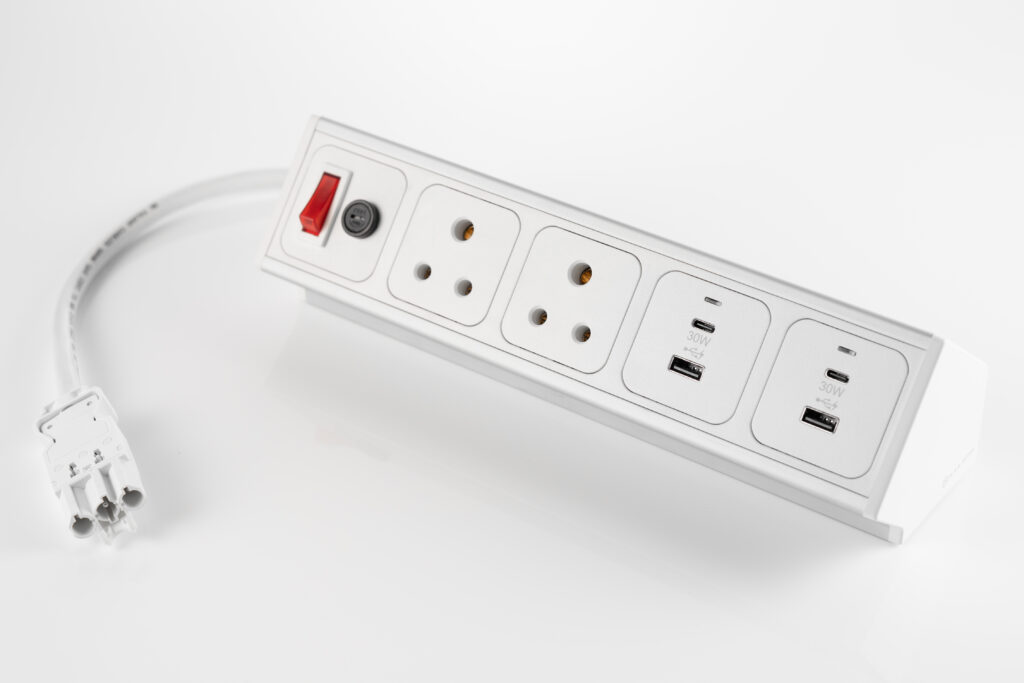

NETBOX Smart

NETBOX Smart is a detachable desktop mounted power & data unit in aluminium finish.

Product Specification

  • Highly flexible and easy to relocate
  • Power strips allow unit to be installed anywhere on table-top surface
  • Optional: Installation with mounting clamp
  • Customizable into various configurations
  • Direct access to power and data modules
  • Available in various lengths
  • Tool-free installation
  • Comes with built-in starter or connector cable in varying length
  • Plug & Play technology

Application Range

  • Executive Desks
  • Workstations
  • Training tables
  • Hotel Rooms
  • Home Offices

Colours

  • Silver/White
  • Silver/Black
  • Champagne/White
  • Champagne/Black

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

6620A

The 6620A CEE Floor Box from BS Bodensteckdosen Systemtechnik is a robust and versatile power distribution solution designed for outdoor environments.

  • Material and Build: The housing is constructed from 3 mm thick stainless steel and it features a 20 mm thick anodized aluminum lid, ensuring durability and resistance to environmental factors.
  • Design: The hinged lid is lockable with a tool and includes a gas pressure spring for assisted opening. It can be closed securely even with plugs inserted, providing protection and convenience.
  • Dimensions: The floor box measures 306 mm in width, 210 mm in height, and 500 mm in depth, requiring a floor installation depth of 210 mm.
  • Load Capacity: Designed to withstand surface loads up to 6.5 tons, making it suitable for areas with vehicular traffic, including trucks.
  • Protection Class: Rated at IP67 when not in use, offering protection against dust and water ingress.

The 6620A CEE Floor Box is engineered for demanding environments, offering a reliable and secure solution for power distribution in outdoor settings.

Dimension:
500×305,5×210 mm

Material Description:
Stainless steel and anodized aluminum

Technical Specification:
500 x 305, 5x 210 mm Supply line:
2x front M32, 1x below drainage hole 50 mm

NETBOX Profilebox Sub

NETBOX Profilebox Sub is a compact; power, data and multimedia unit. Built in durable aluminium finish, the unit is designed for easy under mounting, ideally suited for your workstation, meeting table and home office.

Product Specification

  • Durable and sturdy aluminium profile
  • Individual configuration
  • Customizable up to 35 outlet modules
  • Separate power circuits possible
  • Optional: Male and female connectors in same end cap
  • Plug & Play technology

Application Range

  • Workstations
  • Cable Trays
  • Home Offices
  • Meeting Tables

Technical Details

  • Rated for 110 to 250V, and up to a maximum of 20A
  • Material: ABS-FR; low concentration of heavy metal
  • Power and data are isolated to eliminate interferences
  • Provision for static current discharge
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request
