NETBOX Profilebox Sub

NETBOX Profilebox Sub

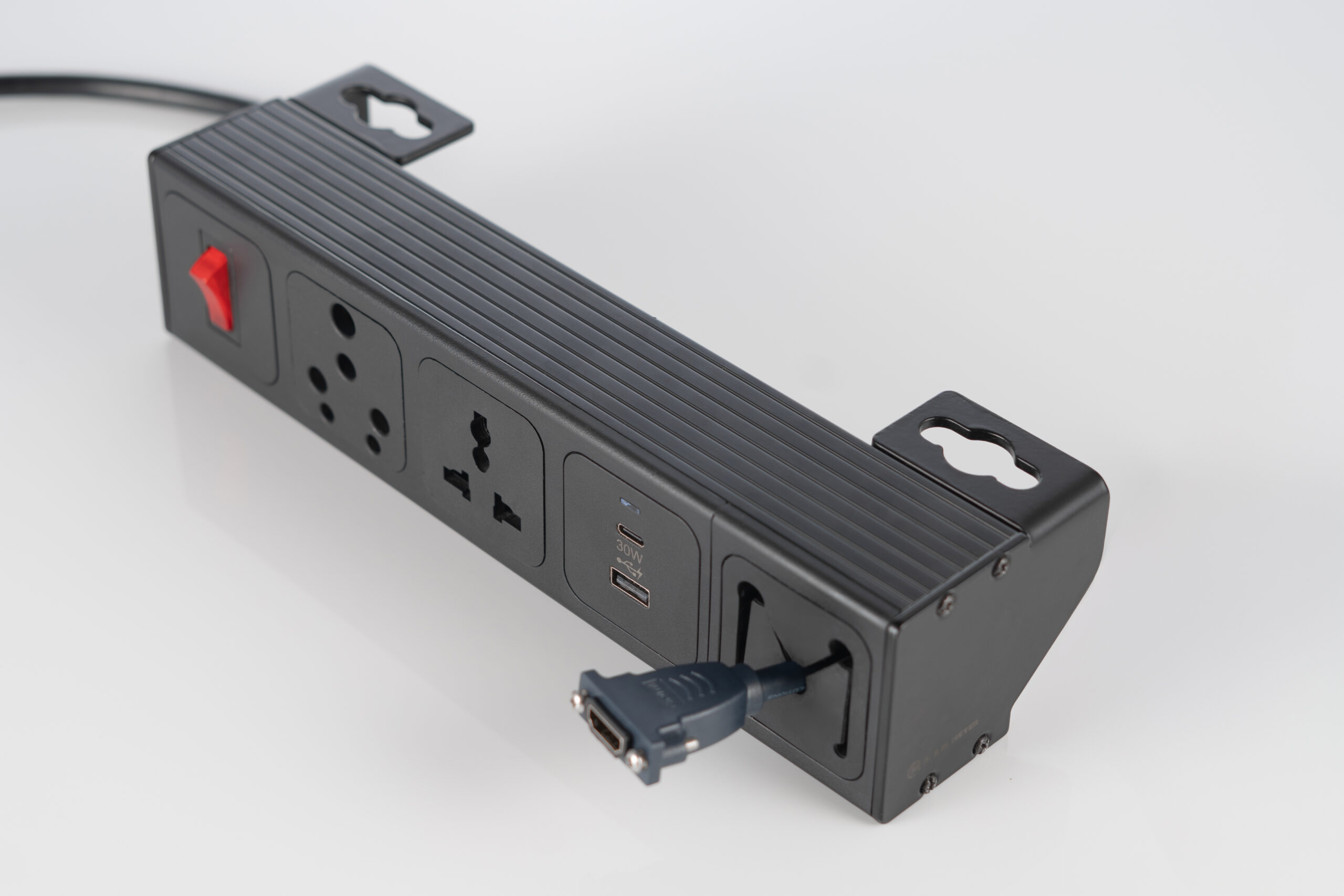

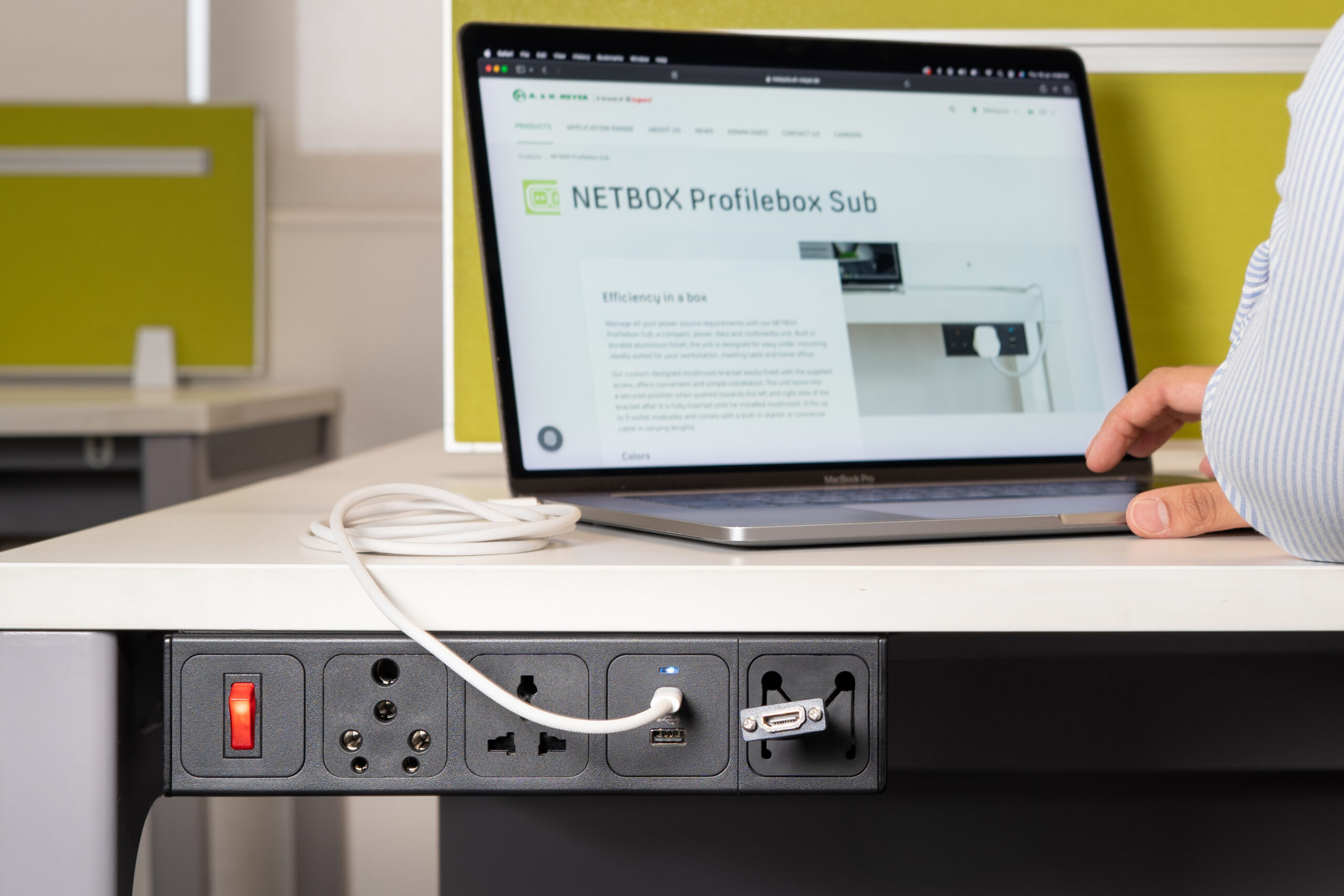

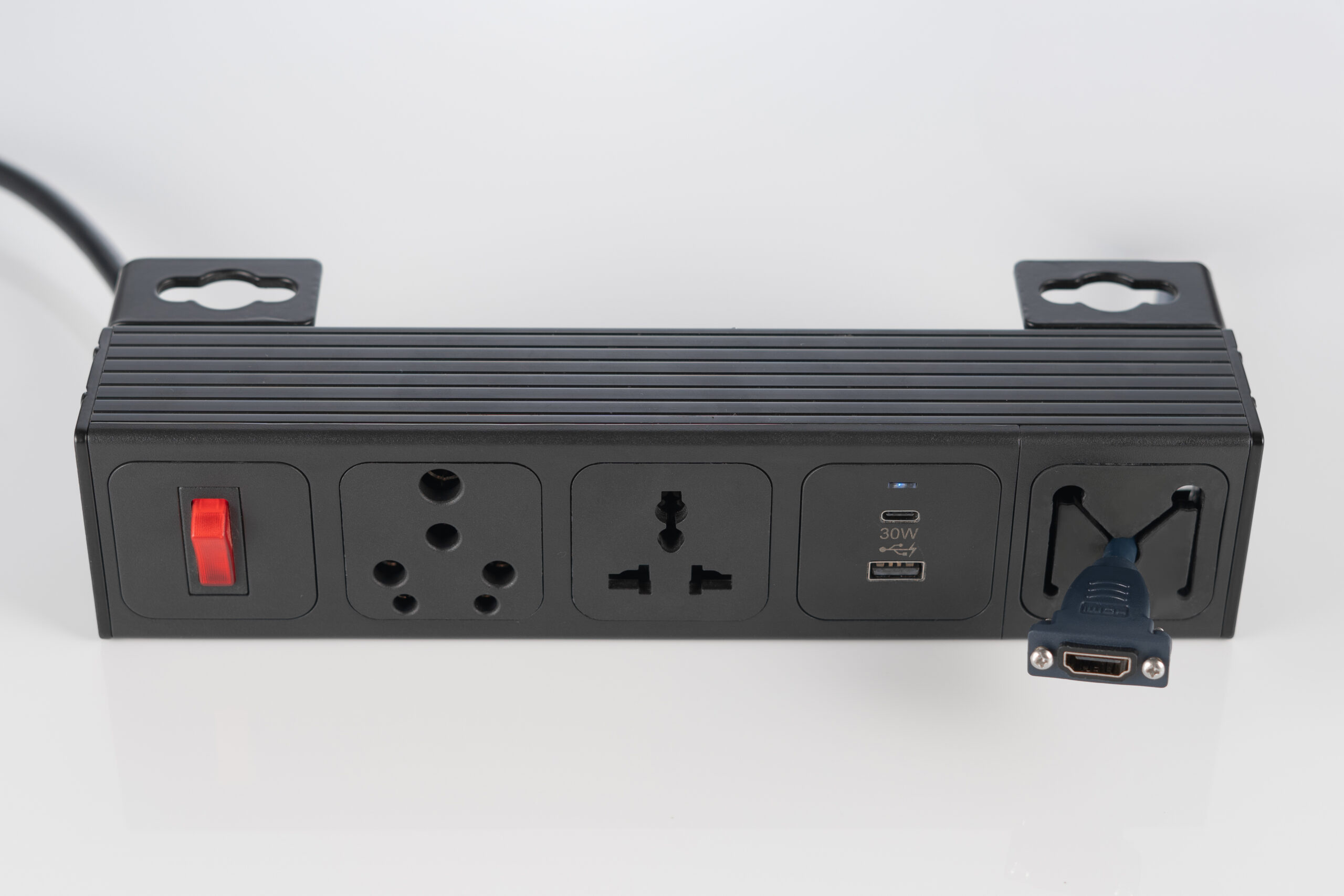

NETBOX Profilebox Sub is a compact; power, data and multimedia unit. Built in durable aluminium finish, the unit is designed for easy under mounting, ideally suited for your workstation, meeting table and home office.

Product Specification

  • Durable and sturdy aluminium profile
  • Individual configuration
  • Customizable up to 35 outlet modules
  • Separate power circuits possible
  • Optional: Male and female connectors in same end cap
  • Plug & Play technology

Application Range

  • Workstations
  • Cable Trays
  • Home Offices
  • Meeting Tables

Technical Details

  • Rated for 110 to 250V, and up to a maximum of 20A
  • Material: ABS-FR; low concentration of heavy metal
  • Power and data are isolated to eliminate interferences
  • Provision for static current discharge
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Colors

Related Products

NETBOX Leaf

The NETBOX Leaf is a surface-mounted unit designed to optimize space and adapt to desk-sharing environments thanks to its compact footprint and elegant form.
Easy to install and use, it can be securely mounted using Powerstrips or a table clamp, offering durable and efficient access to power and communication outlets.
This unit can be configured with 250 module options and comes hardwired with a built-in starter or connector cable of customizable length.
Inspired by modern organic aesthetics, the NETBOX Leaf features fluid lines and dynamic curves with end-caps shaped like a leaf.

Product Specification

  • Highly flexible and easy to relocate
  • Powerstrips allow unit to be installed anywhere on table-top surface
  • Optional: Installation with mounting clamp
  • Customizable into various length and configurations
  • Direct access to power and data modules
  • Comes with built-in starter or connector cable in varying length
  • Plug & Play technology

Application Range

  • Desks
  • Hotels
  • Workstations
  • Universities
  • Training tables
  • Home Offices

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Juke

NETBOX Juke is a detachable desktop unit mounted with power and or USB Charger. It is also suitable for lounge application where the unit can be mounted upside down below furniture.

Product Specification

  • 2 or 3 gang modules of your choice
  • Highly flexible and easy to relocate
  • Can be mounted upside down below furniture
  • Unit can be installed anywhere on table-top surface
  • Comes with built-in starter or connector cable in varying length
  • Cable entry from the back of the unit
  • Mounting options: Powerstrip, screw or clamp
  • Plug & Play technology

Application Range

  • Desks
  • Lounge
  • Workstations
  • Hotels
  • Training tables
  • Universities
  • Home Office

NETBOX Flush

NETBOX Flush is a built-in unit with dual module of your choice. Designed to blend with any environment seamlessly, the NETBOX Flush sits flush with your workspace surface. It features a rounded edge and aesthetic contemporary look.

Product Specification

  • Partition walls in offices, exhibition stalls, and training rooms.
  • Static table configurations.
  • Fitted with two modules of your choice
  • Comes with built in starter cable
  • Minimalist and sleek design
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Training Tables
  • Collaborative Areas
  • Airport Lounge
  • Receiption Desks
  • Hotel Rooms

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA-FR (self-extinguishing according to UL94)
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Starfish

NETBOX Starfish is an on-table unit with easy access to power, data and multimedia outlets. A NETBOX Starfish with built-in wireless charger is also available. This unit features a unique design and is suitable for installation on a 80mm grommet. NETBOX Starfish is ideal for conference and meeting tables.

NETBOX Starfish is an on-table connectivity unit offering easy access to power, data, and multimedia outlets.
Designed for installation on an 80 mm grommet, it features a unique shape ideal for conference and meeting tables.

Product Specification

  • Customised configuration up to 6 outlets
  • Direct access to power, data and multimedia modules
  • Comes with built-in starter cable or connector cable in varying length
  • Installation requires 80mm grommet hole
  • Tool free and quick installation with the click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom Tables
  • Meeting Tables

Colour

  • Black
  • White/Black

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

6620A

The 6620A CEE Floor Box from BS Bodensteckdosen Systemtechnik is a robust and versatile power distribution solution designed for outdoor environments.

  • Material and Build: The housing is constructed from 3 mm thick stainless steel and it features a 20 mm thick anodized aluminum lid, ensuring durability and resistance to environmental factors.
  • Design: The hinged lid is lockable with a tool and includes a gas pressure spring for assisted opening. It can be closed securely even with plugs inserted, providing protection and convenience.
  • Dimensions: The floor box measures 306 mm in width, 210 mm in height, and 500 mm in depth, requiring a floor installation depth of 210 mm.
  • Load Capacity: Designed to withstand surface loads up to 6.5 tons, making it suitable for areas with vehicular traffic, including trucks.
  • Protection Class: Rated at IP67 when not in use, offering protection against dust and water ingress.

The 6620A CEE Floor Box is engineered for demanding environments, offering a reliable and secure solution for power distribution in outdoor settings.

Dimension:
500×305,5×210 mm

Material Description:
Stainless steel and anodized aluminum

Technical Specification:
500 x 305, 5x 210 mm Supply line:
2x front M32, 1x below drainage hole 50 mm

Netbox Axial

NETBOX Axial is a built-in solution that closes flat and flush against its mounted surface. It opens from the front to reveal power, voice, and data sockets whenever required.
The rubber lip allows cables to move to and from devices such as computers, telephones, and multimedia equipment, while the unit remains closed even when in use.

Product Specification

  • Unit opens at 60° angle
  • Spring supported cover for easy opening
  • Cable outlet with rubber lips
  • Unit sits flush with mounted surface
  • Available in any length
  • Customizable into various configurations
  • Tool free installation
  • Quick installation with the click-stop mechanism
  • Plug & Play technology

Application Range

  • Executive Desks
  • Workstations
  • Conference Tables
  • Boardroom Tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA6-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request
