NETBOX Turn Comfort

NETBOX Turn Comfort

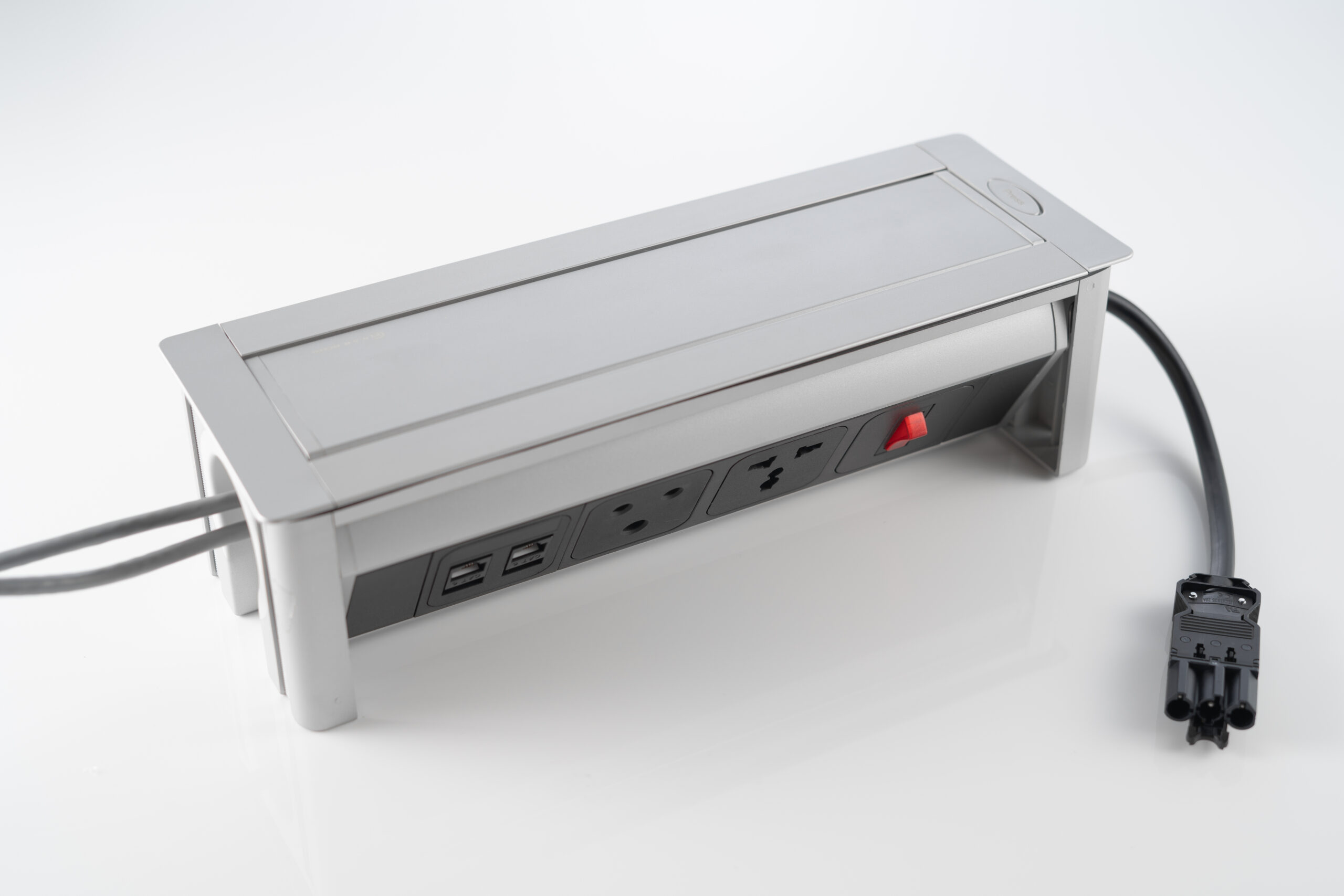

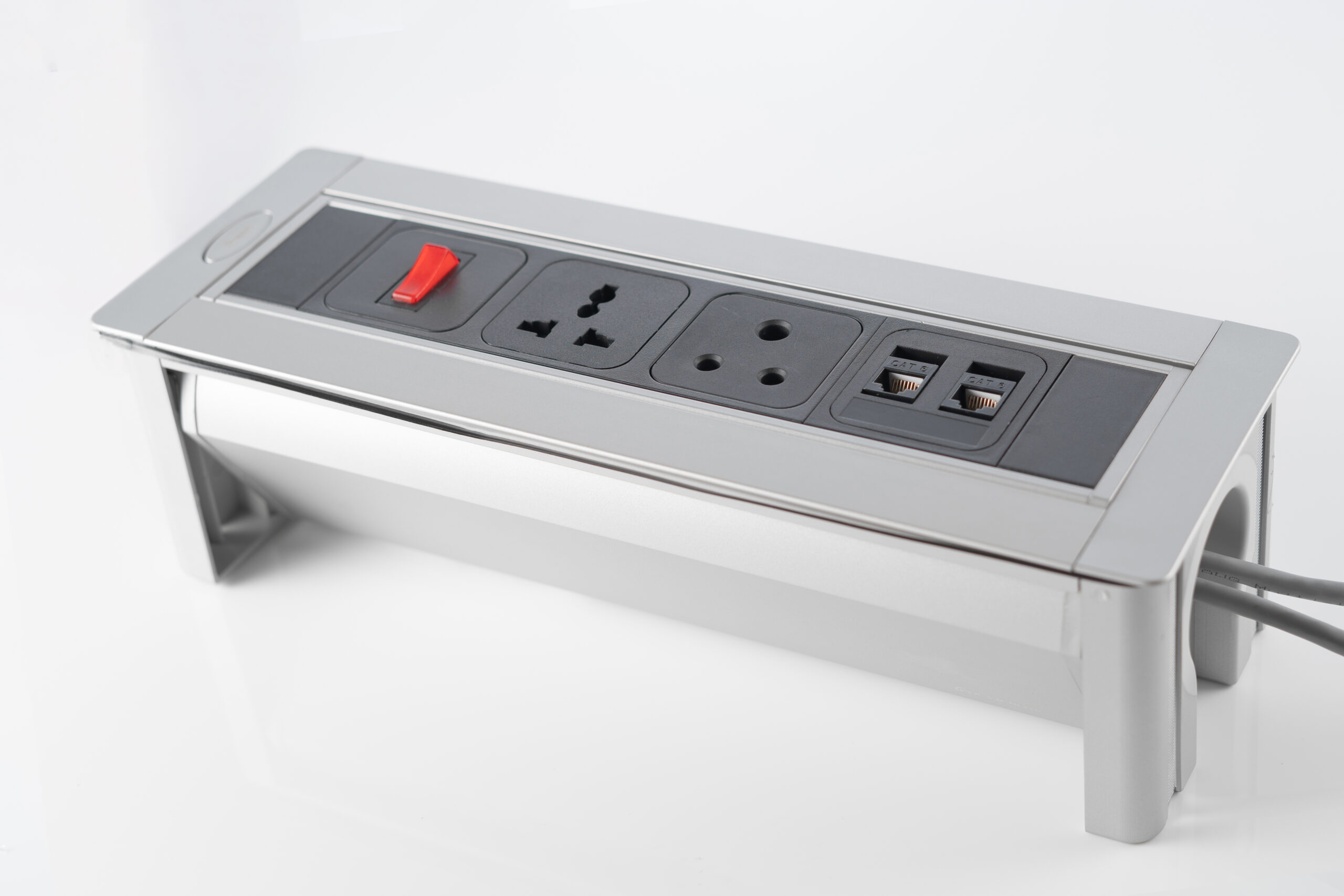

NETBOX Turn Comfort rotates at the press of a button—either to reveal or conceal the socket outlets.
When in the “closed” position, it sits flush with the mounting surface, maintaining a clean, unobtrusive appearance.

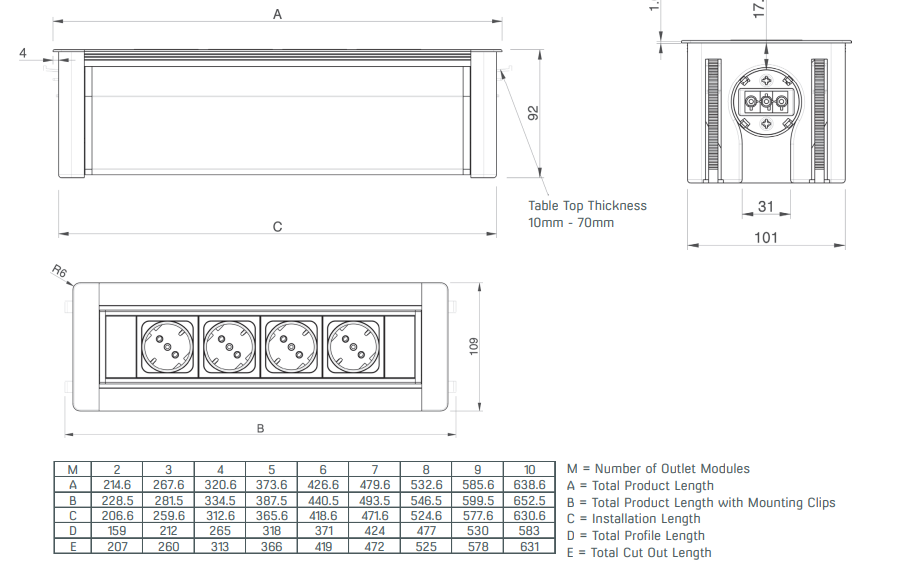

NETBOX Turn Comfort permits access from any angle, making it a highly flexible solution. Since cables run below the table, the unit’s sleek look is enhanced—especially in table tops with a minimum thickness of 10 mm—and it is available in customizable lengths.

Product Specification

  • Sleek and attractive design
  • Unit sits flush with table top surface when retracted
  • Opens automatically with a press on the push button at the side, manual rotation for full display of unit
  • Customizable into various configurations and lengths
  • Accessible from any direction
  • Quick and tool-free installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Colors

Related Products

NETBOX Line

The functional NETBOX Line, with its rounded contours, is a classic built-in desktop solution offering easy access to power, voice, and data sockets.
Its elevated design keeps the unit slightly above the tabletop surface, protecting cables from accidental liquid spills.

Product Specification

  • Sleek design
  • Customizable into various configurations
  • Quick installation with click-stop mechanism
  • Can be interconnected using starter or connector cable
  • Unit is slightly elevated from tabletop surface to protect against liquid spillage
  • Plug & Play technology

Can be combined with features:

  • Monitor Arm (requires a bracket underneath)’
  • Lapguard
  • Grommet hole

Application Range

  • Conference Tables
  • Hotel Rooms
  • Boardroom Tables
  • Executive Desks
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS and PA6 in V0 specification (self-extinguishing according to UL94)
  • Low concentration of heavy metal
  • Aluminium casing is safely grounded to avoid electrocution
  • Available in various lengths
  • Tool-free installation
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Axial Comfort

NETBOX Axial Comfort is a built-in power and data unit in an aluminium finish. For increased convenience it is fitted with a spring supported opening mechanism. The new version features a sleeker design with neat end caps. The unit does not protrude below the end caps once opened and fits the previous cut-out size.

Product Specification

  • Unit opens at 60° angle
  • Spring supported cover for easy opening
  • Cable outlet with rubber lips
  • Unit sits flush with mounted surface
  • Available in any length
  • Customizable into various configurations
  • Tool free installation
  • Quick installation with the click-stop mechanism
  • Plug & Play technology

Application Range

  • Executive Desks
  • Workstations
  • Conference Tables
  • Boardroom Tables
  • Meeting Tables

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: PA6-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

FTC180KP

Designed for various types of flooring including carpets, stone slabs, tiles, and cavity floors. Solidly built and sturdy. Well-finished and available in many design options therefore blends well in most design schemes. FTCL brings you Floor Boxes from all across the globe, for the lowest depths to all kinds of floors. With reliable material, each Floor Box serves a different but key role in a commercial space.

Dimension:
 180x180x75mm

Material Description:
Material of the floor box top cover: SS304
Material of the floor box bottom box: MS (C.R)

Technical Specification:
Fixing space: can fit 10modules.
Thickness of floor box top cover: 5mm

Thickness of the floor box bottom box: 3mm

NETBOX Drop

NETBOX Drop is a seamless built-in solution for workstations and executive desks, providing an organised hub for your power and data connections. It is designed with a sleek and flush design with a ‘drop’ space, allowing you to store your excess cables temporarily while in use. Accessible from the front, the NETBOX Drop is a convenient and practical solution for powering and connecting devices without the hassle of tangled cords at your workstation.

Product Specification

  • Sleek design
  • Customisable into various configurations
  • Standard model for power, voice and data transmission
  • Can be interconnected using connector cables
  • Quick installation with click-stop mechanism
  • Plug & Play technology

Application Range

  • Workstations
  • Executive Desks

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Low concentration of heavy metal
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

NETBOX Starfish

NETBOX Starfish is an on-table unit with easy access to power, data and multimedia outlets. A NETBOX Starfish with built-in wireless charger is also available. This unit features a unique design and is suitable for installation on a 80mm grommet. NETBOX Starfish is ideal for conference and meeting tables.

NETBOX Starfish is an on-table connectivity unit offering easy access to power, data, and multimedia outlets.
Designed for installation on an 80 mm grommet, it features a unique shape ideal for conference and meeting tables.

Product Specification

  • Customised configuration up to 6 outlets
  • Direct access to power, data and multimedia modules
  • Comes with built-in starter cable or connector cable in varying length
  • Installation requires 80mm grommet hole
  • Tool free and quick installation with the click-stop mechanism
  • Plug & Play technology

Application Range

  • Conference Tables
  • Boardroom Tables
  • Meeting Tables

Colour

  • Black
  • White/Black

Technical Details

  • Rated for 110V to 250V and a maximum of 20A according to country specific standards
  • Material: ABS-FR
  • Wiring: 3 x 1.5mm2 standard; 3 x 2.5mm2 upon request

Davis Bus Track System

Applications

  • High-rise buildings
  • Commercial complexes
  • Industrial plants

Characteristics

  • Carefully designed power busways to handle all electrical, thermal, and mechanical load requirements
  • Robust enclosures to ensure optimum heat dissipation
  • Advanced manufacturing with computerised CNC machines for improved precision and accuracy
  • Special epoxy insulation for greater fire resistance
  • Fully mechanical interlocks to prevent tampering and improve safety

TECHNICAL DETAILS

  • Manufactured and tested for compliance with the latest international standards
  • Designed to withstand voltages up to 11kV at frequencies of 60Hz and higher
  • Certified with KEMA/DEKRA and ASTA for protection against short circuits
